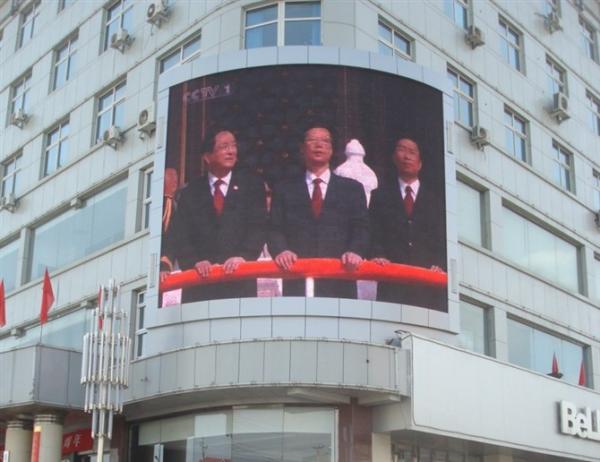

    P10 IP65 5000 - 9500K Iron Advertising Outdoor Full Color Video Curved Led Display Walls

    Ask Lasest Price
    Brand Name : Meltonled
    Certification : CE, RoHS, ISO,FCC,UL
    Model Number : P10
    Price : 1-100000usd
    Delivery Time : 8-25 days
    Payment Terms : 35% T/T as prepayment,65% T/T as balance at factory
    Supply Ability : >500sqm/month
    • Product Details
    • Company Profile

    P10 IP65 5000 - 9500K Iron Advertising Outdoor Full Color Video Curved Led Display Walls

    P10 IP65 5000 - 9500K Iron Advertising Outdoor Full Color Video Curved Led Display Walls


    Product Parameters
    Itemoutdoor full color led display
    Model Numberp10
    Pixel Pitch10mm
    Pixel Density(dots/m²)10000
    Pixel Configuration1R1G1B
    LED TypeDIP346
    Module size(mm)320*160
    Module Resolution(dots)32*16
    Min.Viewing Distance(m)≥10
    Brightness(cd/m²)≥7000
    Viewing Angle(degree)≤120°
    Average Power Consumption(w/m²)350-700
    Scan Mode1/4
    Protection LevelIP65
    Cabinet Size(mm)960*960
    Color TemperatureThe brightness of R.G.B.is adjustable according to software 100level;Color temperature is adjustable in terms of detailed requirements
    Input VoltageAC220 V/50HZ or AC 110V/60HZ
    Refresh RateLED screen refresh frame frequency recommended is no less than 1200HZ(recommended)
    Color64g color(on the condition of 4096 gray scale)
    Horizontal/Vertical viewing angle<120°
    Gray ScaleRecommended 14BIT
    Effective Communication Distance(without relay)Unshielded twisted-pair net line transmission distance is 100 meters,max transmission distance is 130 meters.

    Warranty

    1. We guarantee all our display, modules, spare parts (Silan Chip) for TWO years.

    2. We provide technology training for free, which contains the operation and maintenance training of the LED screens in factory.

    3. After warranty , we also can offer you the parts for replacement at our bottom price.

    4. After sales, if you have any problem about our product, you can inform us by Email, we will reply you at once when we get it and offer you a good solution to solve the problem.

    5. We also could solve problems for you until it recovers well by remote control!


    Delivery Time:

    1. Delivery time: Accomplish manufacturing within 25 days after receiving the deposit.

    2. Before delivery, we will test the display, and keep it light up for 72 hours, and check all the parts of the display to confirm it is Ok for delivery.


    Installation :

    1. We can assist the training and technical support for the customer in the factory, if the customer requires so.

    2. We could send our engineer to guide the installation for you. But the relevant cost should be paid by your esteemed company.

    3. Our technicians will offer CAD Drawing to show how to install the LED Display rightly and fast, of course, if you need.
