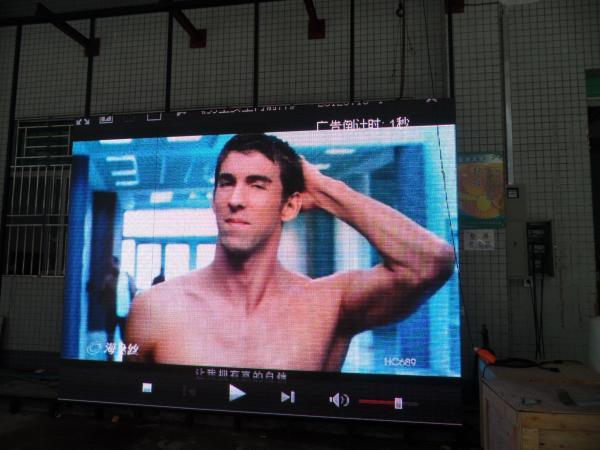

    P10 High Brightness Led Video Wall Rental for Outdoor

    Ask Lasest Price
    Brand Name : Meltonled
    Certification : CE, RoHS, ISO,FCC,UL
    Model Number : P10-R500-01
    Price : 1-100000usd
    Delivery Time : 8-25 days
    Payment Terms : 35% T/T as prepayment,65% T/T as balance at factory
    Supply Ability : >500sqm/month
    • Product Details
    • Company Profile

    P10 High Brightness Led Video Wall Rental for Outdoor

    P10 High Brightness Led Video Wall Rental for Outdoor

    P10 Led Video Wall Rental High Refresh

    Specifications

    1.led outdoor waterproof video
    2.Wide viewing angle video led
    3.High brightness,high refresh
    4.Energy saving
    5.CE.RoHS

    OUTDOOR waterproof led video from china factory



    System
    Top

    1)Outdoor led video technical parameter

    Product model numberMled-PH10-864
    1.Pixel
    Pixel L ED348
    Pixel Configuration1 R, 1G , 1B
    Wave length ( nm )R: 800-1000 , G:2040-2450, B: 360-430
    Pixels Pitch ( mm )10
    2 . Module
    Module Size ( mm )160 * 160 * 20
    Module Pixels (dot)16 * 16
    3.Unit box
    Module quantities in a unit box6 (L) * 6 ( H )
    Unit box size ( mm )960 (L) * 960 (H) * 150
    Unit box Pixels ( dot )96 * 96
    Unit box materialAluminum or Iron
    Unit box weight (kg)Aluminum : 40 or Iron : 55
    4.Packaging
    Packing WayTwo unit boxes
    Packing box materialWooden case or Flight box
    5.electricity parameter
    Pixel density (dots/ m2 )10000
    White Balance Brightness ( cd/m2 )≥7500 (adjustable)
    Color temperature ( K )5000-9500 (choice by user)
    Brightness Adjusted100 grade by software or by Auto-optic induced.
    View AngelHorizontal 120 ° ; Vertical 70 °
    Best viewing distance ( m )16-150
    Communication distance ( m )Internet Wire : 120 Fiber Cable : 1000
    Screen work Method1/4 scan
    LED driving methodConstant driving current
    Gray Grades16384 levels for each color
    Display Color4 , 398 , 046 , 511 , 104
    Refresh Frequency ( Hz )≥ 800
    Picture display methodDots to dots display synchronized with CRT
    Signal interfaceDVI
    Input signalVideo : PAL/NTSC optioned . VGA, Svideo, DVD, TV
    Display format800 * 600 , 1024 * 768 , 1280 * 1024
    SoftwareSupport windows series system
    Protection gradesIP 65
    Working temperature (ºC )-10 +50
    Humidity ( RH )Up to 95
    Stored temperature ( ºC)-30 +70
    Screen Lifetime(hours)≥100, 000
    Out of controlled dots≤3/10, 000 (Out of controlled dots means the pixels of which the brightness, and the wave length are both >10% depart to the normal one)
    Whole display flatnesLess than 1mm Juncture
    Maintance wayBack-maintained or front-maintained,
    modules displaced
    Switch power supply

    Switch power supply (include CE/GS or UL/CSA certificate)

    110V/60HZ , 220V/50HZ

    Power Consumption ( w /m 2 )Max : 750 , Average: ≥ 300

    Competitive Advantage:

    1, Good quality;

    2, Good price;

    3, Good 24hours service;

    4, Green product;

    5, Fast delivery time.
