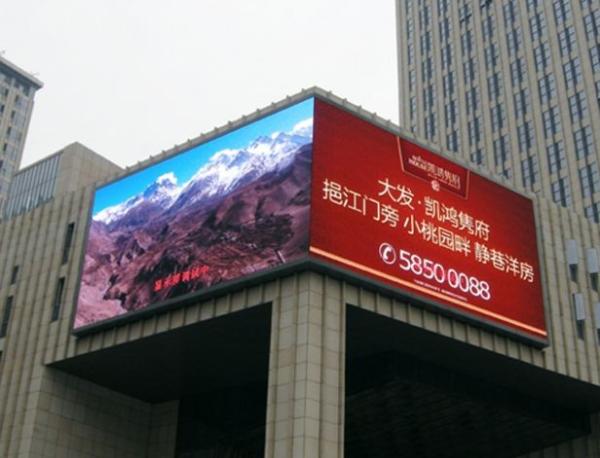

    Advertising Large Outdoor Led Display Full Color , 14bit Gray Led Screens

    Ask Lasest Price
    Brand Name : Meltonled
    Certification : CE, RoHS, ISO,FCC,UL
    Model Number : P16-318
    Price : Contact me pls
    Delivery Time : 12-15 days
    Payment Terms : 35% T/T as prepayment,65% T/T as balance at factory, L/C, MoneyGram
    Supply Ability : >5000sqm/month
    • Product Details
    • Company Profile

    Advertising Large Outdoor Led Display Full Color , 14bit Gray Led Screens


    Advertising Large Outdoor Led Display Full Color , 14bit Gray Led Screens


    China Melton Opto Outdoor RGB advertising video led display screen board


    Specifications


    Outdoor advertising video led display board outdoor led display
    1,Easy fast installation
    2,Showing animation, photoes
    3,Lifetime long
    4,Certificate:CE,RHoS,CCC


    2, Application of led screen:

    The indoor and outdoor LED display are widely used on shopping malls, conference rooms, information centers, control centers, stations, terminals, entertainment, offices and other indoor places, news, advertising, media, publishing and dissemination.


    (1) Use high quality LED chip and driving chip(), very good quality.

    (2) Long life span (100,000 hours).

    (3) High brightness, up to 7000 nit, can be use under strong sun shine environment.

    (4) Easy maintain.

    (5) Working under the temperature -20C to +45C

    (6) Low pixel out of control rate, <0.00001

    (7) Ingress protection: front IP65, rear IP54.


    Technical Parameters:


    Item No.MLED10M3-1616M
    Pixel Pitch (mm)10
    One Pixel1R1G1B
    Density of Pixel (dots/m2)10000
    Drive Method1/4 scan Constant current
    Brightness in White Color(cd/m2)≥8000
    Gray scale14bit
    Color Quantity≥68.7billion
    Frame frequency≥60HZ/S
    Refresh frequency≥2000HZ/S
    Brightness adjust way

    Manual R.G.B each color 256,are levele,automatic 8 grades are

    adjustable

    Viewing Distance≥12m
    Viewing angle (hor/vert)160°/120°
    Protection against water and dustIP65 front/IP54 rear
    Life span>100000 hours
    Display resolution/Module(dots)16×16
    Module Size (mm)160×160
    Cabinet size (W/H)(mm)960×960
    Weight with cabinet (kg)≤47
    Cabinet resolution (W/H)(dot)96×96
    Working temperature-30°C~+60°C
    Working voltage220/110VAC,50/60Hz
    Max.power consumption (W/ m2)≤750
    Control system transmissionDVI display card + main controller + fibre transmission or Rj45 (optional)
    Video signalS-VHS,DVD,TV,Satellite,Color-camera,PC-VGA
    Adopted spare partsLeds, IC, cables etc.
    CertificatesCE,ROHS,CCC
    SoftwareLed studio/LEDT9 software is free

    1) System structure


    Super brightness full color led billboard advertising for outdoor advertising

    2)Led Module

    Super brightness full color led billboard advertising for outdoor advertising

    Module Size(W * H)

    256mm*128mm

    Pixel Configeration

    2R,1G,1B

    Pixel Pitch

    16mm

    Resolution(W*H)

    16dots*8dots

    Pixel Density

    3906 dot / m2

    Driving Method

    static Current


    3)Led cabinet


    Cabinet Size(W * H)

    1024mm*768mm

    Module Qty

    20pcs

    Cabinet Resolution(W * H)

    64dots*48dots

    Cabinet Pixel

    4096

    Weight

    50kg/pc

    Area

    1.23(m2)

    Avarage Power Consumption

    600W/m2

    Max Consumption

    1000W/m2


    4)Led Video wall technical parameter


    Operating Humility

    10% ~ 90% RH

    Oprating Temprature

    -20°C ~ +50°C

    Optimal Viewing Distance

    10m-60m

    Display Color

    1,070,000,000

    Gray Scale

    65536grade

    Brightness control

    256grade

    Frame Frequency

    60HZ

    Refresh Speed

    >3840HZ

    Power Supply

    220V/50HZ

    MTBF

    ≥10,000hours

    Life Span (50% brightness)

    ≥100,000hours

    Control Mode

    synchronization with PC

    Input Signal Format

    VGA,DVI,RGBHV,PbPr(HDTV),Composite,S-Video,TV

    Operating System

    WINDOWS(98,2000,XP,Vista)


    Methods for Quality Assurance

    a. Aging

    1. 100% fully test

    2. Condition: 72 hours with 256 grey level


    b. Vibration Testing

    Condition: 3-5 mins up and down in 5mm range


    Factory Equipment


    Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
    Automatic Glue- pouring Machine, Solder Paste Printing Machine,
    Reflow Soldering Machine, Automatic Solder Paste Printing Machine,
    Withstand Voltage Tester, Ground Resistance Tester,
    Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
    Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipement.


    Package

    Flight case and Fumigation-Free wooden case


    Control System Connection


    Competitive Advantage:

    1. 2 years’ warranty with free repair service

    2. 24/7 Hours online Remote Support

    3. Solution and PCB design

    4. Free factory training

    5. Onsite installation instruction and regular inspection

    6, Small order accepted.
