    2000HZ P16 Outdoor Advertising Led Display Full Color , Stadium Led Digital Billboard

    Ask Lasest Price
    Brand Name : Meltonled
    Certification : CE, RoHS, ISO,FCC,UL
    Model Number : P16-667
    Price : 1-100000usd
    Delivery Time : 8-25 days
    Payment Terms : 35% T/T as prepayment,65% T/T as balance at factory
    Supply Ability : >500sqm/month
    • Product Details
    • Company Profile

    2000HZ P16 Outdoor Advertising Led Display Full Color , Stadium Led Digital Billboard


    2000HZ P16 Outdoor Advertising Led Display Full Color , Stadium Led Digital Billboard

    and dismantle


    Specifications:


    duct model numberMled-PH16-399
    1.Pixel
    Pixel L ED546
    Pixel Configuration2 R, 1G , 1B
    Wave length ( nm )R: 800-1000 , G:2040-2450, B: 360-430
    Pixels Pitch ( mm )16
    2 . Module
    Module Size ( mm )256 * 128 * 20
    Module Pixels (dot)16 * 8
    3.Unit box
    Module quantities in a unit box4 (L) * 6 ( H )
    Unit box size ( mm )
    1024 (L) * 768 (H) * 180
    Unit box Pixels ( dot )64 * 48
    Unit box materialAluminum or Iron
    Unit box weight (kg)Aluminum : 42 or Iron : 55
    4.Packaging
    Packing WayTwo unit boxes packed into one
    Packing box materialWooden case or Flight box
    Packing box size (mm)1150 * 950 * 480
    5.electricity parameter
    Pixel density (dots/ m 2 )3906
    White Balance Brightness ( cd/m 2 )≥ 10000
    Color temperature ( K )5000-9500 (choice by user)
    Brightness Adjusted100 grade by software or by Auto-optic induced.
    View AngelHorizontal 110 ° ; Vertical 70 °
    Best viewing distance ( m )16-150
    Communication distance ( m )Internet Wire : 120 Fiber Cable : 1000
    Screen work MethodStatic
    LED driving methodConstant driving current
    Gray Grades16384 levels for each color
    Display Color4 , 398 , 046 , 511 , 104
    Refresh Frequency ( Hz )≥ 3840
    Picture display methodDots to dots display synchronized with CRT
    Signal interfaceDVI
    Input signalVideo : PAL/NTSC optioned . VGA, Svideo, DVD, TV
    Display format800 * 600 , 1024 * 768 , 1280 * 1024
    SoftwareSupport windows series system
    Protection gradesIP 65
    Working temperature (ºC )-20 +60
    Humidity ( RH )Up to 95
    Stored temperature ( ºC)-30 +70
    Screen Lifetime(hours)≥100, 000
    Out of controlled dots≤3/10, 000 (Out of controlled dots means the pixels of which the brightness,
    and the wave length are both >10% depart to the normal one)
    Whole display flatnesLess than 1mm Juncture
    Maintance wayBack-maintained or front-maintained,
    modules displaced
    Switch power supply

    Switch power supply (include CE/GS or UL/CSA certificate)

    110V/60HZ , 220V/50HZ

    Power Consumption ( w /m 2 )Max : 1150 , Average: ≥ 380

    P16 full color outdoor led display board for advertising,higher brightness 10000nits,2000HZ


    Specifications


    Outdoor advertising video led digital Billboard:
    1.RoHS and CE.ISO,UL
    2.Waterproof IP65
    3.High brightness.
    4.Clear vivid image quality,Lifetime service

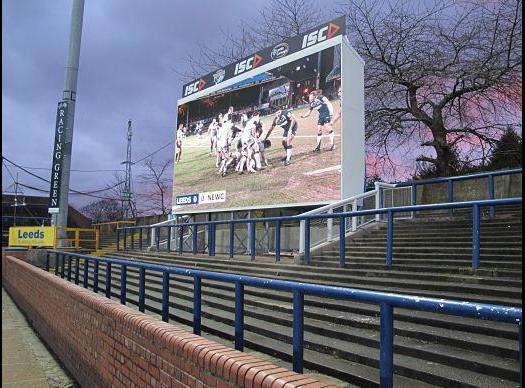

    1.Applications: outdoor P full color digital billboard are very popular in LED display advertising field. This type digital billboards are widely used Outdoor plaza,Outdoor building,stadium,shopping mall,cross road,highway, airport etc;


    2.Features :

    Vivid and exact picture, minimum noise, advanced test equipment, support any pc operationsystem and play a variety of information like video, word, flash, music, clock, graph etc. LED billboard Cabinet design for easy install


    Competitive Advantage:


    1, Good quality;

    2, Good price;

    3, Good 24hours service;

    4, Promote delivery;

    5, Energy-saving;

    6, Small order accepted.
