P5.2 Indoor LED Screens Advertising , 8192 Level High Definition LED Display
Specifications
1. Light weight,super thin cabinet
2. Energy Saving 40%
3. low power consumption
Applications:
advertising media, sports stadiums, airport station integrated
information dissemination, business
establishments, public area.
Function:
video broadcasting,
information publishing,
network remote centralized controlling.
Front-Side Maintenance and Zero Back-Side Maintenance
The AI05 and AI06 LED panels are installed with fasteners on the
front of the panels. This makes it easier to assemble and
disassemble the displays. The LED display signal receiving card can
be directly installed on the front of the panels, and even the
power supply connections are available on the front. This provides
a 5-time increase in maintenance efficiency.

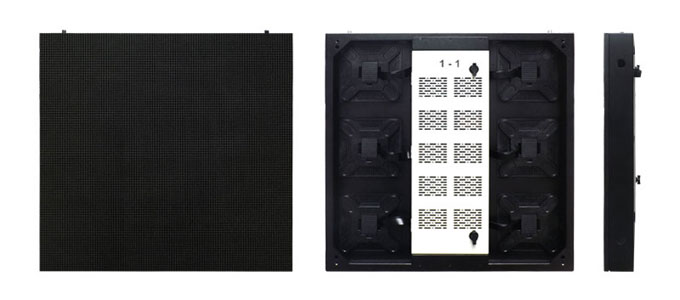

The panel cabinets are only 85mm thick and can also be installed
from the front. This ensures space savings of more than 80% and
provides true zero back-side maintenance.
Exceptional Noise-Free Design
The panels have automatic heat dissipation technology that doesn’t
use fans, ensuring noise-free displays with low power consumption.
Tips for indoor fixed screen installation:
Most LED display screens installed indoors in shopping malls,
supermarkets, shopping centers, transportation hubs, hotels, etc.,
require high-quality displays and have specific requirements:
1. Crystal Clear Display Effect: As indoor space is limited and
viewer distance from displays will generally be within 50 meters it
is imperative to have high-definition displays with crystal clear
images.
2. Beauty lies in Harmony: LED displays need to adapt and be one
with the surroundings. It is necessary that LED displays can be
created in various shapes, such as in arches, etc., to become a
part of the surroundings. The display screen’s size and thickness
need to be adaptable to be consistent and in harmony with the
building’s environment.
3. Quiet and Pollution-free Environment: While running, indoor LED
displays have to maintain low noise and low heat. This will ensure
that patrons feel relaxed and can enjoy viewing high-quality images
without being adversely affected by heat and noise.
Applications: Outdoor & indoor advertising media, commercial real
estate, government offices, event venues, large shopping malls,
etc.
| Parameters | Value | Unit |
| Pixel pitch | 5.2 | mm |
| Brightness | 1800 | nits |
| Panel dimensions(W×H×D) | 750×750×85 | mm |
| Panel dimensions(W×H×D) | 29.53×29.53×3.35 | Inch |
| Panel materail | Steel | |
| Weight | 16 | kg/cabinet |
| Weight | 28.4 | kg/m² |
| Pixel configuration | 3-in-1 SMD | |
| Module dimensions (W×H) | 250×250 | mm |
| Module dimensions (W×H) | 9.84×9.84 | Inch |
| Pixel matrix per panel | 144×144 | pixels |
| Pixel density | 36864 | pixels/sq.m. |
| Refresh rate | ≥800 | Hz |
| Gray scale per color | 8192 | level |
| Colors | 549 Billion | |
| Viewing angle(H/V) | 120/120 | deg. |
| IP rating(Front/Rear) | IP40/IP21 | |
| Power consumption(max/avg) | 390/130 | W/sq.m. |
| Input voltage(AC) | 110~240 | V |
| Operating temperature | -10 ～40 | ℃ |
| Operating humidity | 10%~90% | |
| Source compatibility(with video processor) | AV, S-Video, VGA, DVI, HDMI, SDI, DP |
Methods for Quality Assurance
a. Aging
1. 100% fully test
2. Condition: 72 hours with 256 grey level
b. Vibration Testing
Condition: 3-5 mins up and down in 5mm range
Factory Equipment
Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Reflow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection
(AOI) Equipement.
Package
Flight case and Fumigation-Free wooden case
Control System Connection
Competitive Advantage:
1. 2 years’ warranty with free repair service
2. 24/7 Hours online Remote Support
3. Solution and PCB design
4. Free factory training
5. Onsite installation instruction and regular inspection
6, Small order accepted.
