P4 SMD Full Color Curved Custom Led Display High Definition Wide Viewing Angle

Melton optoelectronics co., LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap P4 SMD Full Color Curved Custom Led Display High Definition Wide Viewing Angle from wholesalers

    Buy cheap P4 SMD Full Color Curved Custom Led Display High Definition Wide Viewing Angle from wholesalers
    • Buy cheap P4 SMD Full Color Curved Custom Led Display High Definition Wide Viewing Angle from wholesalers
    • Buy cheap P4 SMD Full Color Curved Custom Led Display High Definition Wide Viewing Angle from wholesalers
    • Buy cheap P4 SMD Full Color Curved Custom Led Display High Definition Wide Viewing Angle from wholesalers
    • Buy cheap P4 SMD Full Color Curved Custom Led Display High Definition Wide Viewing Angle from wholesalers
    • Buy cheap P4 SMD Full Color Curved Custom Led Display High Definition Wide Viewing Angle from wholesalers

    P4 SMD Full Color Curved Custom Led Display High Definition Wide Viewing Angle

    Ask Lasest Price
    Brand Name : Meltonled
    Certification : CE, RoHS, ISO,FCC,UL
    Model Number : P6 SMD-BALL
    Price : 8000usd
    Delivery Time : 8-25 days
    Payment Terms : 35% T/T as prepayment,65% T/T as balance at factory
    Supply Ability : >500sqm/month
    • Product Details
    • Company Profile

    P4 SMD Full Color Curved Custom Led Display High Definition Wide Viewing Angle

    P4 SMD Full Color Curved Led Display High Definition


    P6-8S.pdf

    Specifications

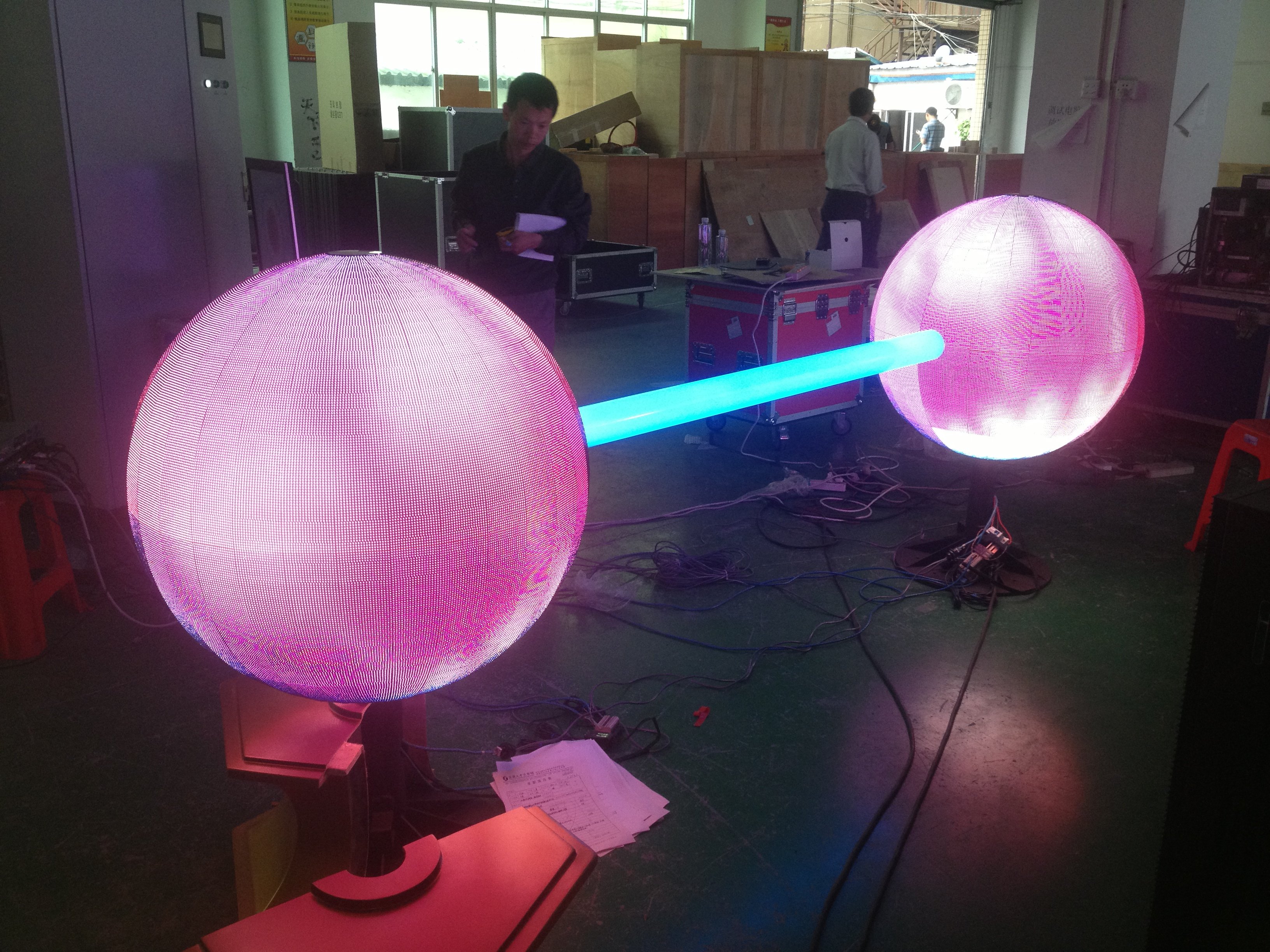

    P4 SMD high definition full color flexible led ball display
    1. wide viewing angle
    2. hi-uniformity
    3. CE,ROHS,FCC
    4. tech supp

    Products details:


    P4 SMD high definition full color flexible led ball display
    1. wide viewing angle
    2. hi-uniformity
    3. CE,ROHS,FCC
    4. tech supp


    Parameters:

    Item

    Parameter

    Pixel

    Physical pixel pitch: 6 mm

    Pixel configuration: 1R1PG1PB

    Chip

    Wave

    Brightness

    Packing

    R

    Opto

    620-625nm

    300mcd

    SMD-2724

    G

    Silan

    520+/_1.25nm

    850mcd

    SMD-2724

    B

    Silan

    470+/_1.25nm

    180mcd

    SMD-2724

    Module

    Module resolution: 32 x 32 pixels





    Module size: 192 x 192 mm

    Cabinet

    Physical resolution: 96 x 96 pixels

    Cabinet size: 576 x 576 x 140mm

    Physical density:9216 pixels/cabinet

    Module quantity: 9pcs = 3(w) x 3(h)

    Material: Iron

    Weight: 20Kg

    Power supply(5V40A)quantity: 3pcs

    Average power consumption: 200W

    Max power consumption: 400W

    Electricity parameter

    Brightness: 1500 - 1800 nits

    Brightness adjusted: 100 grade by software, or by Auto-optic induced

    Color processing: 16bit

    Display color: 280 trillion

    Color temperature(k): 5000 — 9500 (choice by user)

    Physical density: 27777 pixels/m2

    Whole display flatness: ≤ 1mm juncture

    Best view distance: ≥ 3m

    Best view angle: Horizontal ±80°, Vertical ±80°

    Storage temperature: -35°C ~ +85°C Working temperature: -20°C ~ +50°C

    Driving method: Constant driving current Scan: 1/16

    Refresh frequency: ≥ 300Hz

    Frame rate: ≥ 60Hz

    Humidity(RH): ≤ 90 ~ 95%

    Protection grade: IP64

    Working Voltage: DC 5V

    Power supply: AC110 / 220V, 50/60Hz

    Average power consumption: 800 w/m2

    Max power consumption: 1600 w/m2

    MTBF: 10000 hours

    Screen lifetime: 100000 hours

    Control system

    Control system: Linsn

    Signal interface: DVI

    Communication distance: Internet cable: ≤ 120m Fiber cable: 1000m

    Signal transfer mode: Pixels to pixels display synchronized


    Packaging & Shipping

    Corrugated carton Package:

    This is also for led module,40pcs/carton,Carton Size:66x36x36cm


    Plywood case package:

    In usually, 4pcs cabinet pack into one case,this is for indoor fixed installation led display

    3pcs cabinet pack into one case,this is for outdoor fixed installation led display

    Both for shopping by air and shipping by sea


    Flight case package:

    9pcs cabinet pack into one case,this is for rental led display use with convenient wheels and can move anytime,for long time use.
