    Full Color Video Led Outdoor Display Board With 1R1G1B / VGA , DVI Input Signal

    Ask Lasest Price
    Brand Name : Meltonled
    Certification : CE, RoHS, ISO,FCC,UL
    Model Number : P16-318
    Price : 600usd
    Delivery Time : 7-15 days
    Payment Terms : 35% T/T as prepayment,65% T/T as balance at factory, Western Union, MoneyGram
    Supply Ability : >500sqm/month
    • Product Details
    • Company Profile

    Full Color Video Led Outdoor Display Board With 1R1G1B / VGA , DVI Input Signal

    Full Color Video Led Outdoor Display Board With 1R1G1B / VGA , DVI Input Signal

    Specifications

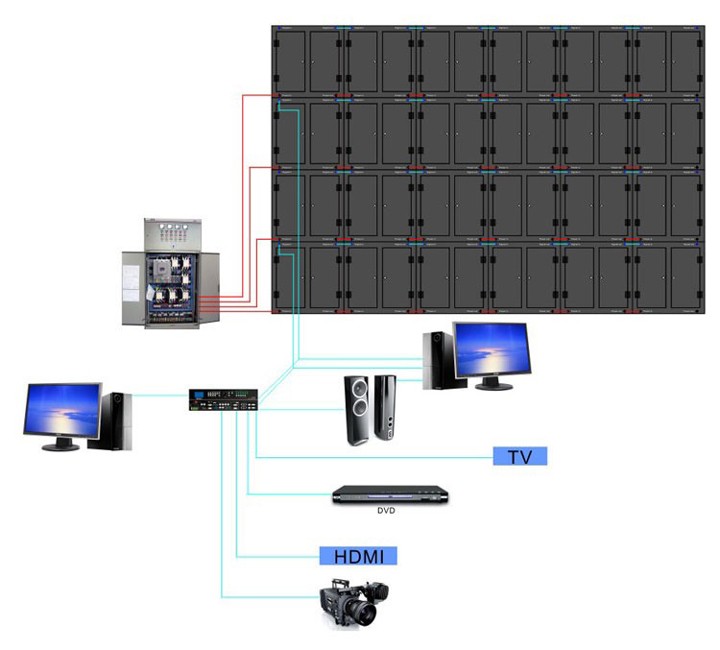

    1) System structure

    2)Led Module


    Module Size(W * H)

    256mm*256mm

    Pixel Configeration

    1R,1G,1B

    Pixel Pitch

    16mm

    Resolution(W*H)

    16dots*16dots

    Pixel Density

    3906 dot / m2

    Driving Method

    static Current

    3)Led cabinet

    Cabinet Size(W * H)

    1024mm*768mm

    Module Qty

    20pcs

    Cabinet Resolution(W * H)

    64dots*48dots

    Cabinet Pixel

    4096

    Weight

    50kg/pc

    Area

    1.23(m2)

    Avarage Power Consumption

    600W/m2

    Max Consumption

    1000W/m2


    4)Led Video wall technical parameter


    Operating Humility

    10% ~ 90% RH

    Oprating Temprature

    -30°C ~ +60°C

    Optimal Viewing Distance

    10m-60m

    Display Color

    1,070,000,000

    Gray Scale

    65536grade

    Brightness control

    256grade

    Frame Frequency

    60HZ

    Refresh Speed

    >3840HZ

    Power Supply

    220V/50HZ

    MTBF

    ≥10,000hours

    Life Span (50% brightness)

    ≥100,000hours

    Control Mode

    synchronization with PC

    Input Signal Format

    VGA,DVI,RGBHV,PbPr(HDTV),Composite,S-Video,TV

    Operating System

    WINDOWS(98,2000,XP,Vista)


    Methods for Quality Assurance


    a. Aging

    1. 100% fully test

    2. Condition: 72 hours with 256 grey level


    b. Vibration Testing

    Condition: 3-5 mins up and down in 5mm range


    Factory Equipment


    Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
    Automatic Glue- pouring Machine, Solder Paste Printing Machine,
    Reflow Soldering Machine, Automatic Solder Paste Printing Machine,
    Withstand Voltage Tester, Ground Resistance Tester,
    Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
    Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipement.


    Package

    Flight case and Fumigation-Free wooden case


    Competitive Advantage:

    1. 2 years’ warranty with free repair service

    2. 24/7 Hours online Remote Support

    3. Solution and PCB design

    4. Free factory training

    5. Onsite installation instruction and regular inspection

    6, Small order accepted.
