    Large Digital Club Led Billboard Display Outdoor Video Display Full Color P10

    Ask Lasest Price
    Brand Name : Meltonled
    Model Number : P10-F288
    Certification : CE, RoHS, ISO,FCC,UL
    Price : 380-450usd/sqm
    Payment Terms : 35% T/T as prepayment,65% T/T as balance at factory, MoneyGram, Western Union, L/C
    Supply Ability : >50000sqm/month
    Delivery Time : 10-12 working days
    • Product Details
    • Company Profile

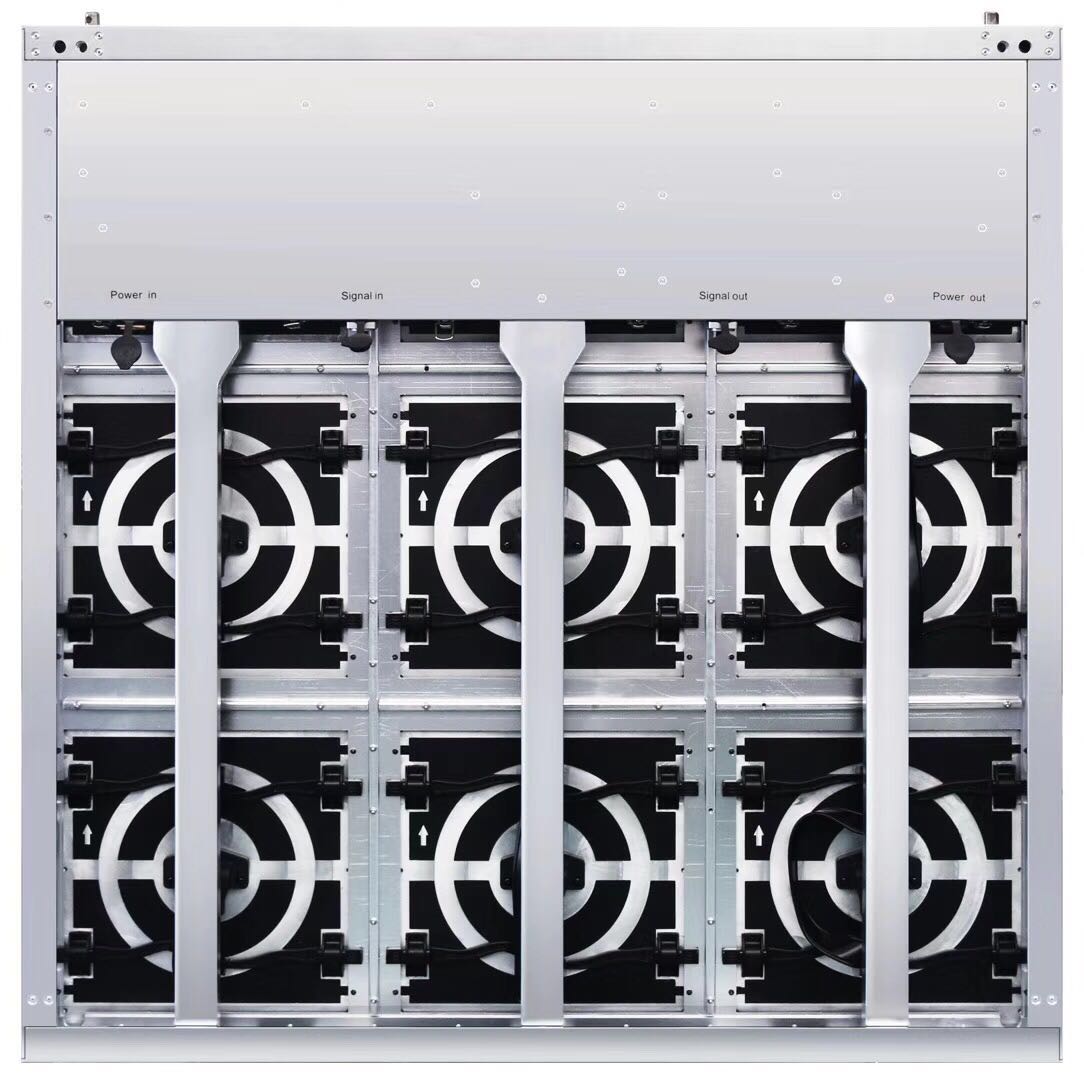

    Large Digital Club Led Billboard Display Outdoor Video Display Full Color P10

    large led display digital club led display screen indoor nichia led outdoor video display billboard


    Specification

    1, Waterproof IP65

    2,High brightness 6500-8000nits/sqm

    3,High referesh rate 1920hz/s

    Items

    P10 Outdoor Full Color Module

    Module

    Pixel Pitch

    10mm

    Pixel Density (dot/m²)

    10000

    Pixel Configuration

    1R1G1B

    Packaged Type of LED

    DIP346/SMD3535

    Module Size(mm)

    320X160

    Module Resolution

    32X16

    Technical

    Parameter

    Brightness(cd/m²)

    7000-8000

    Max Power Consumption(w/m²)

    350

    Best Viewing Distance(m)

    10-30

    Viewing Angle

    120°H/120°V

    Drive Mode

    Constant Current drive 1/4 scan

    Driving

    Driving IC MBI5026 / MBI5024

    Frame-change Frequency

    ≥60 Hz/s

    Refresh Rate

    ≥600Hz/s

    Gray Grade Level

    4096 Grades

    Color

    1073741824 kinds of colors

    Control System

    Synchronization Control

    Transmission Distance

    Reticle≤100M;Multi-mode Fiber≤500M; Single-mode Fiber≤10000M

    Out of Control

    Rate≤0.0001

    Lifespan

    ≥100000H

    Driving Power

    5V

    Working Voltage

    AC220V±10% 47HZ~60hz

    Working Temperature

    -10°C~+55°C

    Working Humidity

    5%RH~85%RH



    FAQ

    1. What is LED?


    LED is sanded for Light Emitting Diode, a kind of semiconductor which is used to give and receive the electronic signal into infrared rays or light, using the characteristics of compound semiconductor. This is used for household appliances, remote controller, electric bulletin board, various kinds of automation appliances.


    2. What are Pixel Pitch, Pixel Density, LED QTY, and Pixel Configuration?


    Pixel Pitch is the distance between neighboring pixels.
    Pixel Density is the quantity of pixels per square meter.
    LED QTY is the quantity of LED lamps per square.
    Pixel Configuration is the description of the consistence of a pixel, for instance, we use 1 red lamp, 1 green lamp, and 1 blue lamp to compose a pixel, the pixel configuration is 1R1G1B.


    3. What are LED Type, Module size and Module resolution?


    LED Type is the description of LED lamp, for instance, the brand, the shape in physical, the size of the lamp, etc.
    Module size is the measurement of a module.
    Module resolution is the number of pixels per module.
