P5mm outdoor taxi roof SMD 3528 full color advertising led displays
1. Pitch 5mm
2. Outdoor waterproof IP65
3.It shows video, text, photo
4. new product
Product Description

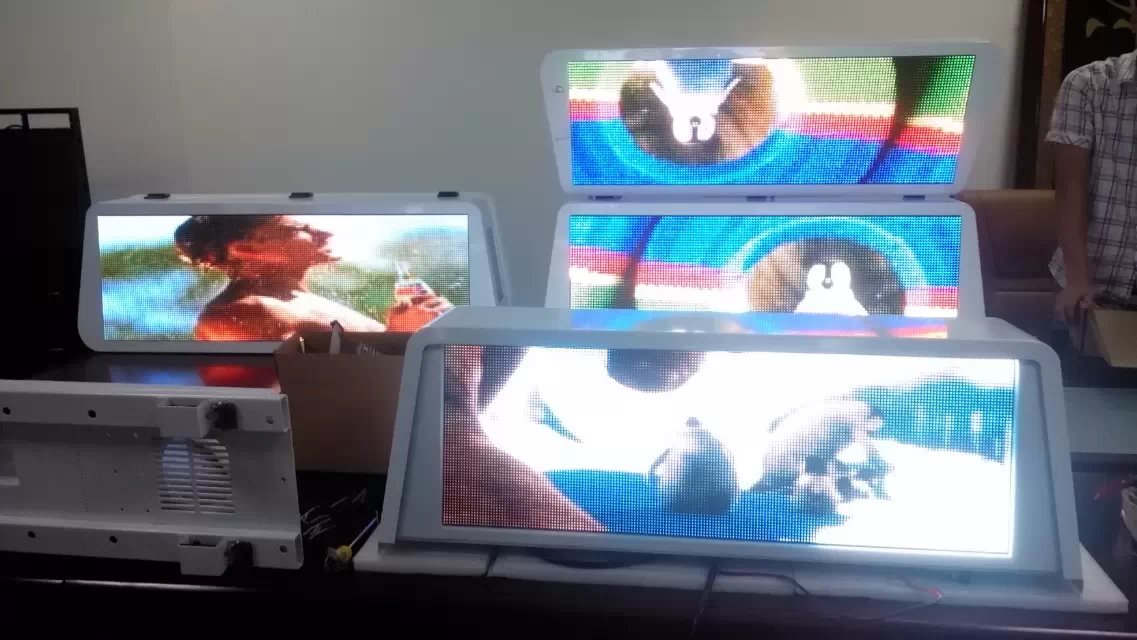

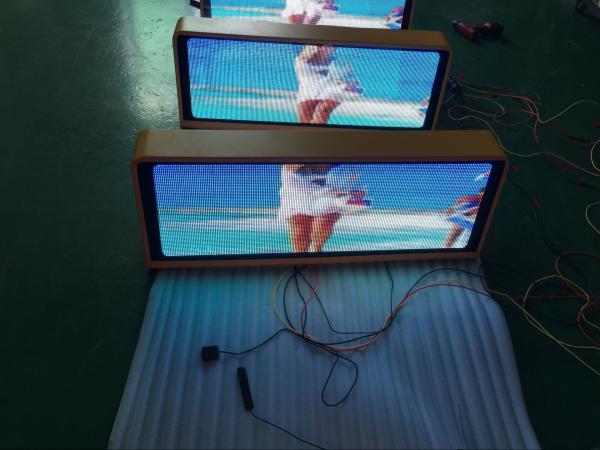

Taxi top display now is so popular all over the world. Widely used for message and video advertising.
It'll bring you more benefit from advertising and social
reputation.
We had already done many sucessful projects and helped our
customers enlarging their markets ,hot saling now with very good
price. We have P4, P5, P6. Size can be customized.
Hope to keep in touch with you and any inquire or question will be
welcome.
Technical Specs
| Item | Parameter |
| Module | Pixel Pitch | 5mm |
| Pixel Density | 40000 pixels/m2 |
| Pixels Composition | SMD2020 1R1G1B |
| Module Resolution(H×V) | 60 pixels × 60pixels |
| Module Dimension(H×V) | 160mmX160mm |
| Drive IC | MBI5024 |
| LED Chip | R:Opto, GB: Silan |
| Drive Mothod | 1/8 scan |
| Max. Power Consumption/module | 12w |
| Screen | Display size | 960x320mm |
| Resolution | 192pixelsX64pixels |
| Cabinet Quantity | 1PCS |
| Module Quantity | 24PCS+1PCS(spare) |
| Control System | 1 sending card +2receiving cards |
| Main Particular | Cabinet Material | aluminum |
| Power Consumption/Cabinet | <900w |
| Ingression Proof Grade | IP 65 waterproof cabinet |
| Brightness(static) | ≥5000cd/m2 |
| Optimal Viewing Distance | >5m |
| Inputting Voltage | DC12V |
| Optimal Viewing Angle | H≤120°, V≤120° |
| LED Life Span | 50,000 - 100,000 hrs |
| Operating Enviroment | -20°C~+60°C; Humidity: 10% -90% |
Q1,How to arrange payment?
Our payment terms in usually is T/T payment,for sample and small
order,Western union,Paypal or Moneygram also be acceptable
Q2,What is our warranty?
Our warranty from 5year to 1year basis on different type led
screen,In usually every screen we will ready more extra led screen
moduless as spare modules,if some modules happen fails,you can
replace the fail modules by our spare modules,When all the spare
modules use out,You can send back these modules to us for
repair,and we will send to you after repair and testing&aging
well
Q3,How to be our distributor?
To be our distributor,We can share our profit together with you in
every year,Also we can send our engieer or sales to your compay to
support your business,also for led screen after-service,We will
together with you to the after-service in the whole led screen life
time
Q4, How to maintence led screen?
In usually every year to maintence led screen one time,clear the
led mask,checking the cables connection,if any led screen modules
fail,you can replace it with our spare modules
Q5,How to select led type?
In usually,
For indoor stage will be select indoor die casting P2.5 P3 P4 P5 P6,P3.91 P4.81
P6.25
For outdoor stage will be select P4.81 P6.25 P6 P8 P10
For fixed installed led screen, can select P3 P4 P5 P6 P7.62 P10
For outdoor fixed installation,if it is not directly to sun,can select outdoor SMDP6 P8 P10,DIP
P10 P12
if directly to sun,can select outdoor SMD P8, DIP P10
For big size led screen can select DIP P10 P12 P16 or P20
Also we have researched outdoor high resolution DIP 3in1: P4 P5 P6
P8 P10,there are good for high resolution led screen
