    Outdoor Advertising P10 Full Color Led Display Screen High Brightness

    Ask Lasest Price
    Brand Name : Meltonled
    Model Number : P10-M10-N24
    Certification : CE, RoHS, ISO,FCC,UL
    Price : 590usd/sqm
    Payment Terms : 35% T/T as prepayment,65% T/T as balance at factory, MoneyGram, Western Union
    Supply Ability : >500sqm/month
    Delivery Time : 7-15 working days
    • Product Details
    • Company Profile

    Outdoor Advertising P10 Full Color Led Display Screen High Brightness


    Outdoor Advertising P10 Full Color Led Display Screen High Brightness

    Specifications

    ItemTechinical Specifications
    Pixel Pitch8mm10mm12mm16mm
    LED ConfigurationSMD 3-in-1(SMD3535)DIP246 (1R1G1B)DIP246 (1R1G1B)DIP246 (1R1G1B)
    Pixel Density15625 pixels/sq.m10000 pixels/sq.m6944 pixels/sq.m3906pixels/sq.m
    Module Size256mm*128mm160mm*160mm192mm*192mm256mm*128mm
    Module Resilution32pixel*16pixel16pixel*16pixel16pixel*16pixel16pixel*8pixel
    Cabinet Size1024mm*1024mm960mm*960mm960mm*960mm1024mm*1024mm
    Cabinet Resolution128pixels*128pixels96pixels*96pixels80pixels*80pixels64pixels*64pixels
    Cabinet MaterialIron/AluminumIron/AluminumIron/AluminumIron/Aluminum
    Cabinet weight50kg/sqm or 40kg/sqm50kg/sqm or 40kg/sqm50kg/sqm or 40kg/sqm50kg/sqm or 40kg/sqm
    Brightness6000cd/sqm8000cd/sqm7500cd/sqm8500cd/sqm
    Colour temperature3500K-9500K(adjustable)3500K-9500K(adjustable)3500K-9500K(adjustable)3500K-9500K(adjustable)
    Viewing AngleH:140°/V:140°H:110°/V:55°H:110°/V:55°H:110°/V:55°
    Brightness Uniformity97%97%97%97%
    Ave. Power consumption240 W/sqm200 W/sqm200 W/sqm240 W/sqm
    Max. Power consumption800W/sqm600W/sqm600W/sqm800W/sqm
    Best Viewing Distance8101216
    Contrast ratio5000:15000:15000:15000:1
    Frame rate50/60 Hz/sec50/60 Hz/sec50/60 Hz/sec50/60 Hz/sec
    Refresh rate1200Hz1200Hz1200Hz1200Hz
    Drive Mode1/4 scan1/4 scan1/4 scanStatic contant current
    Brightness AdjustmentManual/Auto/Programmable
    Input VoltageAC220V/50HZ or AC110V/60HZ (±10%)
    Output Voltage5V,40A
    Grey scale levelsR(256bit) x G(256bit) x B(256bit)
    Display ColorsR(1024) x G(1024) x B(1024)
    Protection LevelIP65
    Life-span100,000 hours
    MTBF10,000 hours
    Malfunction dot rate< 0.0001
    Storage Temp/Humidity-40~+65/10~90%RH
    Operating Temp/Humidity-20~+65/10~90%RH
    Control SystemSynchronous/Asynchronous/Wifi/3G Wireless for choice
    Input SignalRF,TV,RGB,S-VIDEO,PAL,DVI,HDMI,VGA,SDI,AVI,RGBHV,CVBS,etc
    PC Operating SystemMicrosoft Windows 7, 8, 98, 2000, XP and Vista

    Outdoor Advertising Led Display

    1.Warranty:2 years
    2.Lifespan:100000hours
    3.Brightness:8000cd/sq.m
    4.Waterproof IP65

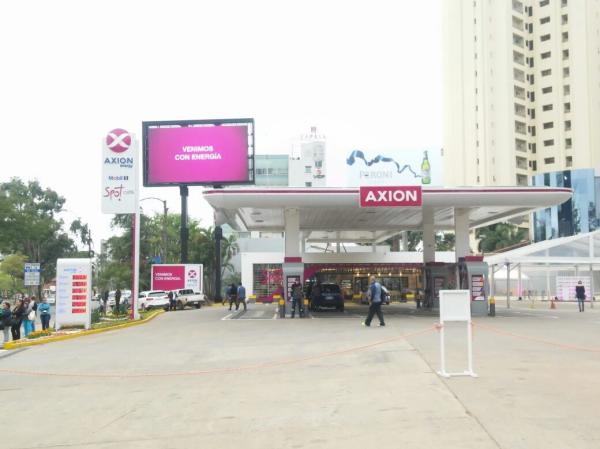

    high stability outdoor led billboard display


    Features & Technical Specification:
    1. Wide application field: Advertising LED display, Stadium perimeter LED display, Mobile LED display for mobile media, shopping mall LED display for logo showing, bank & stock exchange LED display for rates showing, train & bus station, airport, telecommunication LED screen system for information showing and instruction, Stage performances and so on.
    2. High Contrast and Frequency: 4000: 1 and 5000Hz, which is a very high level to ensure a vivid image of our LED screen system.
    3. First-class LED chip: Supplied by Silan & other high strictly selected LED chip to ensure the long life time and high brightness of our LED screen system.

    4. Clear vivid image quality: Even in direct, full-on sunlight to ensure you attracts more audience to get short ROI of your LED screen's investment.
    5. Long-term Brightness: 7500-nit brightness(for outdoor full color)(2000 nits brightness for indoor full color)capacity throughout product lifetime of the LED display.
    6. Easy Installation & Using: Easy & simple installation interface and user friendly software to ensure the user friendly interface of the LED screen system.
    7. Convenient Servicing: Front or rear cabinet access make the maintains work very convenient and low cost to help you concentrate more time and energy on your main marketing promotion business.


    Competitive Advantage:

    1, Good quality;

    2, Good price;

    3, Good 24hours service;

    4, Promote delivery;

    5, Energy-saving;

    6, Small order accepted.


    FAQ:


    Q1,How to arrange payment?

    Our payment terms in usually is T/T payment,for sample and small order,Western union,Paypal or Moneygram also be acceptable


    Q2,What is our warranty?

    Our warranty from 5year to 1year basis on different type led screen,In usually every screen we will ready more extra led screen moduless as spare modules,if some modules happen fails,you can replace the fail modules by our spare modules,When all the spare modules use out,You can send back these modules to us for repair,and we will send to you after repair and testing&aging well


    Q3,How to be our distributor?

    To be our distributor,We can share our profit together with you in every year,Also we can send our engieer or sales to your compay to support your business,also for led screen after-service,We will together with you to the after-service in the whole led screen life time


    Q4, How to maintence led screen?

    In usually every year to maintence led screen one time,clear the led mask,checking the cables connection,if any led screen modules fail,you can replace it with our spare modules


    Q5,How to select led type?

    In usually,

    For indoor stage will be select indoor die casting P2.5 P3 P4 P5 P6,P3.91 P4.81 P6.25

    For outdoor stage will be select P4.81 P6.25 P6 P8 P10

    For fixed installed led screen, can select P3 P4 P5 P6 P7.62 P10

    For outdoor fixed installation,if it is not directly to sun,can select outdoor SMDP6 P8 P10,DIP P10 P12

    if directly to sun,can select outdoor SMD P8, DIP P10

    For big size led screen can select DIP P10 P12 P16 or P20

    Also we have researched outdoor high resolution DIP 3in1: P4 P5 P6 P8 P10,there are good for high resolution led screen
