    IP65 waterproof electronic advertising led display , led outdoor billboards

    Ask Lasest Price
    Brand Name : Meltonled
    Model Number : P6-M10-N26
    Certification : CE, RoHS, ISO,FCC,UL
    Price : 390-420usd/sqm
    Payment Terms : 35% T/T as prepayment,65% T/T as balance at factory, MoneyGram, Western Union, L/C
    Supply Ability : >5000sqm/month
    Delivery Time : 12-15 working days
    • Product Details
    • Company Profile

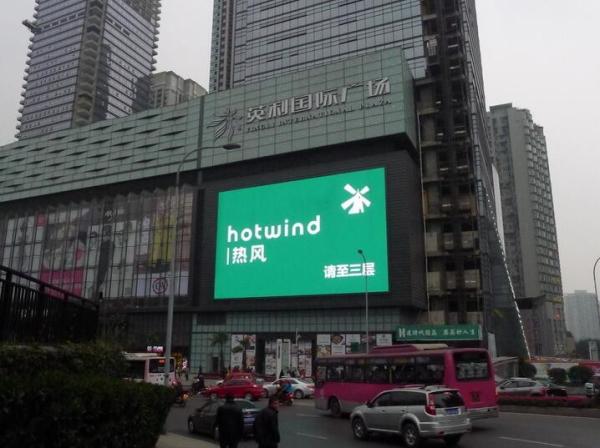

    IP65 waterproof electronic advertising led display , led outdoor billboards

    IP65 waterproof electronic advertising led display , led outdoor billboards

    Specifications

    P6 OUTDOOR SMD 3IN1 TECHNICAL PARAMETERS

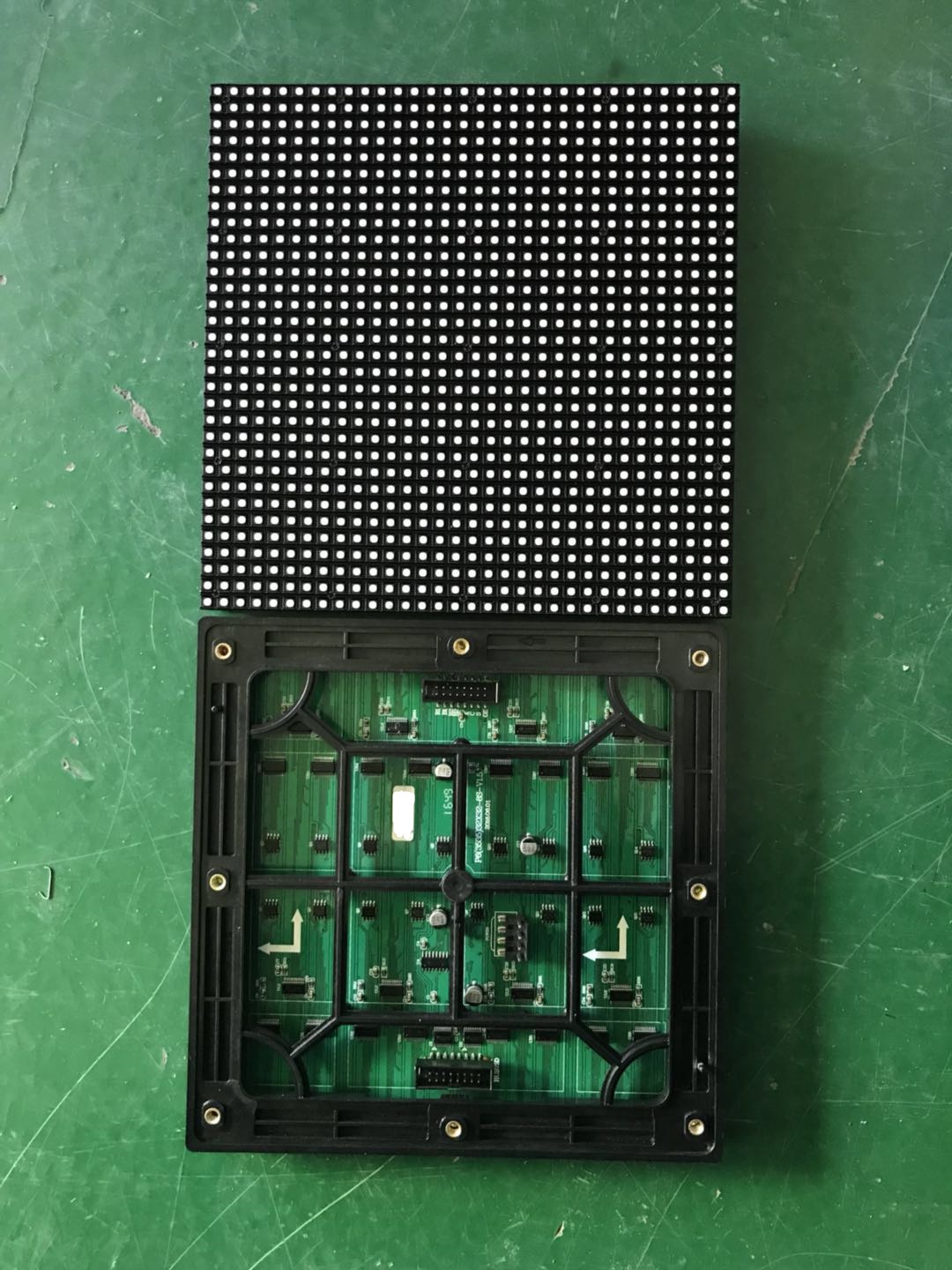

    Unit Module

    ItemParameter
    Model NumberP6-8S
    Module size192mm*192mm
    Pixel pitch6mm
    Pixels Density27777dots /m2
    Pixel configuration1R1G1B
    LED Package modeSMD3535/2727
    Pixel resolution32dots(W)*32dots(H)
    Max Power35W
    Module thickness17.05mm
    Weight0.369kg
    Drive typeConstant drive
    Scan mode1/8scan
    Port typeHUB75
    Brightness of white balance>6000cd/m2

    LED

    Cabinet

    Dimension576mm*576mm
    Monomer Module Number9pcs
    Power supply5V/60A*1 pcs
    Thermal dischargefan 1pcs
    Pixel per cabinet96mm*96mm
    Best viewing distance6M 40M
    Best viewing angle160 (W) 120 (H)
    Temperature

    storage:-35 +85

    working:-20 +50

    Relative humidity10%-95%
    Thickness85mm

    IP65 waterproof electronic advertising led display , led outdoor billboards


    Power

    Working voltageAC110V 220V 10%
    Average Power consumption<380W/sqm
    Max.Power consumption<950W/sqm
    Current<20mA(single LED)

    Control system

    CPUPentium4 or above P4
    Operation systemWIN98/2000/NT/XP/WIN7
    Control methodSynchronization

    Main technical

    parameter

    Driving deviceConstant drive IC
    Refresh frequency>1200HZ
    Grey scale/colors

    16384 , 16.7M

    16384gray level/16.7M colors

    MTBF>9000hours
    Power switchAutomatic switch
    Display Mode800*600/1024*768


    FAQ:


    Q1,How to arrange payment?

    Our payment terms in usually is T/T payment,for sample and small order,Western union,Paypal or Moneygram also be acceptable


    Q2,What is our warranty?

    Our warranty from 5year to 1year basis on different type led screen,In usually every screen we will ready more extra led screen moduless as spare modules,if some modules happen fails,you can replace the fail modules by our spare modules,When all the spare modules use out,You can send back these modules to us for repair,and we will send to you after repair and testing&aging well


    Q3,How to be our distributor?

    To be our distributor,We can share our profit together with you in every year,Also we can send our engieer or sales to your compay to support your business,also for led screen after-service,We will together with you to the after-service in the whole led screen life time


    Q4, How to maintence led screen?

    In usually every year to maintence led screen one time,clear the led mask,checking the cables connection,if any led screen modules fail,you can replace it with our spare modules


    Q5,How to select led type?

    In usually,

    For indoor stage will be select indoor die casting P2.5 P3 P4 P5 P6,P3.91 P4.81 P6.25

    For outdoor stage will be select P4.81 P6.25 P6 P8 P10

    For fixed installed led screen, can select P3 P4 P5 P6 P7.62 P10

    For outdoor fixed installation,if it is not directly to sun,can select outdoor SMDP6 P8 P10,DIP P10 P12

    if directly to sun,can select outdoor SMD P8, DIP P10

    For big size led screen can select DIP P10 P12 P16 or P20

    Also we have researched outdoor high resolution DIP 3in1: P4 P5 P6 P8 P10,there are good for high resolution led screen
