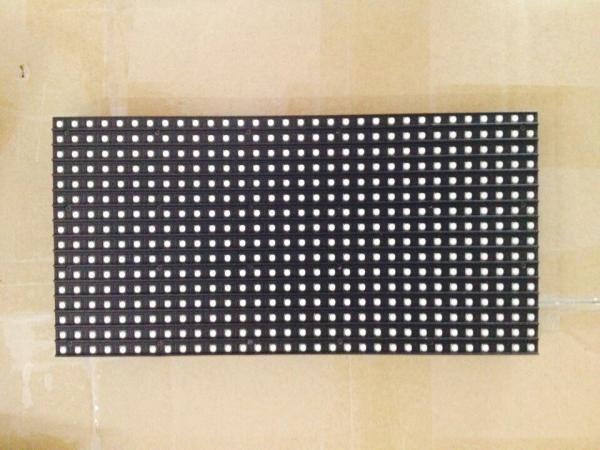

    P8 SMD 3535 /2727 National Star Package Outdoor Full Color Led Display Modules

    Ask Lasest Price
    Brand Name : Meltonled
    Model Number : MLED-SMD-RGB8
    Certification : CE, RoHS, ISO,FCC,UL
    Price : 400-420usd/sqm
    Payment Terms : 35% T/T as prepayment,65% T/T as balance at factory, Western Union, MoneyGram
    Supply Ability : >50000sqm/month
    Delivery Time : 8-10 days
    • Product Details
    • Company Profile

    P8 SMD 3535 /2727 National Star Package Outdoor Full Color Led Display Modules

    P8 SMD 3535 /2727 national star package outdoor full color led display modules


    Specifications
    1. even luminance
    2. long service time
    3. excellent character appearance


    IP 65 Waterproof Slim Cabinet P10mm 1 R1G1B Aluminum or Iron Flashing LED Module CE, RoHS


    Description:

    1. Unique die-cast aluminum cabinet structure, stable, light, and durable;

    2. Light, slim and dense, provide a better platform for the shows;

    3. Precisely showing, quick responding, and flexible located installation, well performing in any site;

    4. High gray handling technology, garanteed the best image quality;

    5. High refresh rate as over 1500Hz.

    Applications:

    This kind of LED 1R1G1B full color led display is appliled for displaying advertising, city beautifying,

    information publicity, great concerns and relative activities.


    Specifications:

    Product model number

    Mled-PH8-1

    1.Pixel

    Pixel L ED

    3535

    Pixel Configuration

    1 R, 1G , 1B

    Wave length ( nm )

    R: 626-628 , G: 518-520 , B: 466-468

    Pixels Pitch ( mm )

    8

    2 . Module

    Module Size ( mm )

    256 * 128 * 10

    Module Pixels (dot)

    32 * 16

    3.Unit box

    Module quantities in a unit box

    4 (L) * 6 ( H )

    Unit box size ( mm )


    1024 (L) * 768 (H) * 120

    Unit box Pixels ( dot )

    128 * 96

    Unit box material

    Aluminum or Iron

    Unit box weight (kg)

    Aluminum : 25 or Iron : 35

    4.Packaging

    Packing Way

    one box packed into one

    Packing box material

    Wooden case or Flight box

    5.electricity parameter

    Pixel density (dots/ m 2 )

    15625

    White Balance Brightness ( cd/m 2 )

    ≥ 6500

    Color temperature ( K )

    5000-9500 (choice by user)

    Brightness Adjusted

    100 grade by software or by Auto-optic induced.

    View Angel

    Horizontal 120 ° ; Vertical 120 °

    Best viewing distance ( m )

    8-150

    Communication distance ( m )

    Internet Wire : 120 Fiber Cable : 1000

    Screen work Method

    1/8 scan

    LED driving method

    Constant driving current

    Gray Grades

    16384 levels for each color

    Display Color

    4 , 398 , 046 , 511 , 104

    Refresh Frequency ( Hz )

    ≥ 800

    Picture display method

    Dots to dots display synchronized with CRT

    Signal interface

    DVI

    Input signal

    Video : PAL/NTSC optioned . VGA, Svideo, DVD, TV

    Display format

    800 * 600 , 1024 * 768 , 1280 * 1024

    Software

    Support windows series system

    Protection grades

    IP 65

    Working temperature (ºC )

    -30+60

    Humidity ( RH )

    Up to 95

    Stored temperature ( ºC)

    -30 +70

    Screen Lifetime(hours)

    ≥100, 000

    Out of controlled dots

    ≤3/10, 000 (Out of controlled dots means the pixels
    of which the brightness

    and the wave length are both >10%
    depart to the normal one)

    Whole display flatnes

    Less than 1mm Juncture

    Maintance way

    Back-maintained or front-maintained,
    modules displaced

    Switch power supply

    Switch power supply
    (include CE/GS or UL/CSA certificate)
    110V/60HZ , 220V/50HZ

    Power Consumption ( w /m 2 )

    Max : 1000 , Average: ≥ 600


    Competitive Advantage:

    Q: What about the quality?

    A: We control the quality form the raw material, we only choose the qualified supplier to cooperate, and we have strictly inspection process, we know how to keep the brand value for both of us!
    Q: Do you offer FREE sample?
    A: We need to charge for the cost of the sample, however it can be refund if your place a lagre order.
    Q: How many years of warranty can you offer?
    A: We offer 1 year of warranty.If you need longer warranty, the price should be a little higher.
    Q: What's the lead time for average order? What's the shipping time?
    A: If module stock is available, the lead time is within 7 working days and for screen order, the lead time will be 15-25 working days.
