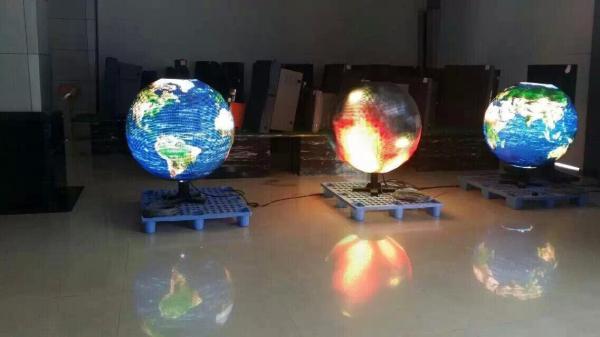

    Indoor Rental Full Color Curved Led Display Ball for Video Picture

    Ask Lasest Price
    Brand Name : Meltonled
    Model Number : P4 SMD-BALL
    Certification : CE, RoHS, ISO,FCC,UL
    Price : 8800usd/pc
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : >50000sqm/month
    Delivery Time : 8-25 days
    • Product Details
    • Company Profile

    Indoor Rental Full Color Curved Led Display Ball for Video Picture

    Indoor Rental Full Color Curved Led Display Ball for Video,Picture

    Specifications

    P4 SMD high definition full color flexible led ball display
    1. wide viewing angle
    2. high-uniformity
    3. CE,ROHS,FCC
    4. tech support


    Parameters:

    Item

    Parameter

    Pixel

    Physical pixel pitch: 4 mm

    Pixel configuration: 1R1PG1PB

    Chip

    Wave

    Brightness

    Packing

    R

    Opto

    620-625nm

    300mcd

    SMD-2724

    G

    Silan

    520+/_1.25nm

    850mcd

    SMD-2724

    B

    Silan

    470+/_1.25nm

    180mcd

    SMD-2724

    Module

    Module resolution: 32 x 64 pixels





    Module size: 128x 256 mm

    Cabinet

    Physical resolution: 128 x 128pixels

    Cabinet size: 512 x 512 x 140mm

    Physical density:16384 pixels/cabinet

    Module quantity: 6pcs = 2(w) x 3(h)

    Material: Iron

    Weight: 20Kg

    Power supply(5V40A)quantity: 1pc

    Average power consumption: 200W

    Max power consumption: 400W

    Electricity parameter

    Brightness: 1500 - 1800 nits

    Brightness adjusted: 100 grade by software, or by Auto-optic induced

    Color processing: 16bit

    Display color: 280 trillion

    Color temperature(k): 5000 — 9500 (choice by user)

    Physical density: 27777 pixels/m2

    Whole display flatness: ≤ 1mm juncture

    Best view distance: ≥ 3m

    Best view angle: Horizontal ±120°, Vertical ±120°

    Storage temperature: -35°C ~ +85°C Working temperature: -20°C ~ +50°C

    Driving method: Constant driving current Scan: 1/16

    Refresh frequency: ≥ 300Hz

    Frame rate: ≥ 60Hz

    Humidity(RH): ≤ 90 ~ 95%

    Protection grade: IP64

    Working Voltage: DC 5V

    Power supply: AC110 / 220V, 50/60Hz

    Average power consumption: 800 w/m2

    Max power consumption: 1600 w/m2

    MTBF: 10000 hours

    Screen lifetime: 100000 hours

    Control system

    Control system: Linsn

    Signal interface: DVI

    Communication distance: Internet cable: ≤ 120m Fiber cable: 1000m

    Signal transfer mode: Pixels to pixels display synchronized

    Applications

    Business OrganizationsSupermarket, large-scale shopping malls, star-rated hotels, travel agencies
    Financial OrganizationsBanks, insurance companies, post offices, hospital, schools
    Public PlacesSubway, airports, stations, parks, exhibition halls, stadiums, museums, commercial buildings, meeting rooms
    EntertainmentsMovie theaters, clubs, stages



    FAQ:
    1. what is LED?
    LED is the abbreviation leds (LIGHT EMITTING DIODE), it’s emit visible wavelengths led in the LED display industry
    2. what is a pixel and pixel pitch?
    The pixel is the smallest unit of light-emitting, consists of red, green and blue colors. The same as ordinary computer monitors.
    Pixel pitch refers to the center of the distance between two adjacent pixels.
    3. what is the DIP, SMT and SMD?
    DIP is DOUBLE IN - LINE PACKAGE, dual-in-line assembly
    SMT is FACE SURFACE MOUNTED technology, Is currently one of the most popular technology in the electronic assembly industry;
    SMD is SURFACE MOUNTED DEVICE.
    4. what is the LED display module?
    The base unit determined by circuit and installation structure, has the display function, can simple assembling.
