    Nationstar Chip Outdoor Full Color LED Display 6mm Pixel Pitch 6000cd/sqm Brightness

    Ask Lasest Price
    Brand Name : MLED
    Model Number : MLED-P6
    Certification : CE, RoHS,FCC
    Price : $588-$593 /SQM
    Payment Terms : L/C T/T, Western Union, MoneyGram
    Supply Ability : >50000sqm/month
    Delivery Time : 18-25 days
    • Product Details
    • Company Profile

    Nationstar Chip Outdoor Full Color LED Display 6mm Pixel Pitch 6000cd/sqm Brightness

    Production description


    High Quality Video LED Screens Full Color Led Outdoor Display Board


    Features:
    1.Ultra-thin & ultra-light
    2.Die casted AL cabinets, high precision with seamless splicing
    3.Standard cabinet size: 192*192mm, convenient for area calculation
    4.Highly effective & quick for transportation and screen assembling
    5.SMD black light, wider viewing angle, high-contrast(5000:1),soft image
    6.Special buckles structural connection between the cabinets,don't need other tools
    7.Cabinets are in common use for standard modules,shorten production cycle


    Specification


    P6 SMD3535 Outdoor full Color LED Screen
    Pixel pitch6mm
    Pixel Configuration1R1G1B
    LED componentSMD3535
    Size of module192mm x 192mm
    Resolution of module32 x32dots
    Size of cabinet768mm X 768mm x 150mm/960mm x 960mm x 150mm
    Resolution of cabinet128x 128 dots/160x160dots
    Material of CabinetIron/Aluminum
    Weight of Cabinet30/45KGS
    Brightness>6000cd/sqm
    Density27777dots/sqm
    Best viewing angle140 /140
    Pixel Configuration1R1G1B
    Best viewing distance5-60M
    Maximum power consumption1000W/sqm
    Average power consumption560W/sqm
    Driving method1/8 scan
    Control methodSynchronization
    Gray scale65536
    Colors256*256*256
    Color temperature3200-9300k
    Uniformity97%
    Working voltageAC220V/110V±10%
    Working temperature-20ºC~+50ºC±10%
    Working humidity10% ~ 90%
    MTBF10,000 hours
    Frame frequency50/60Hz
    Refresh frequency>1920Hz
    IP gradeIP65
    Life Span100,000 hours
    Data transfer methodRJ45
    Practical standardCCC TUV-CE ETL etc.
    Effective Communication
    Distance (without relay)
    Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
    Single-mode optic fiber: 10KM
    Accepting signal with video processorPAL/NTSC/ SECAM S-Video; VGA;RGB; HDMI,DVI, Composite Video; SDI,DP etc.
    Systems operating platformWINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development

    Functions and Advantages
    1. High refresh rate: With NOVA STAR control system, no scanning line when photographed
    2. High gray level: 256 RGB each, display 16.7M colors, vivid and perfect video effect
    3. High resolution: The most apparent features of the new generation of LED display
    4. Good color uniformity: With brand Lamp Nationstar and high refresh MBI5124 IC.
    5. High Brightness: 6000-8000 CD/m2, brightness automatically adjusted
    6. High Quality: CE, RoHS, FCC, UL, IP65, ISO9001 passed + 96 Hours serious testing time
    7. Long life span: Over100, 000hours, warranty from 2 to 5 years.
    8. You need = We design: Provide Personal- Customized LED offer.

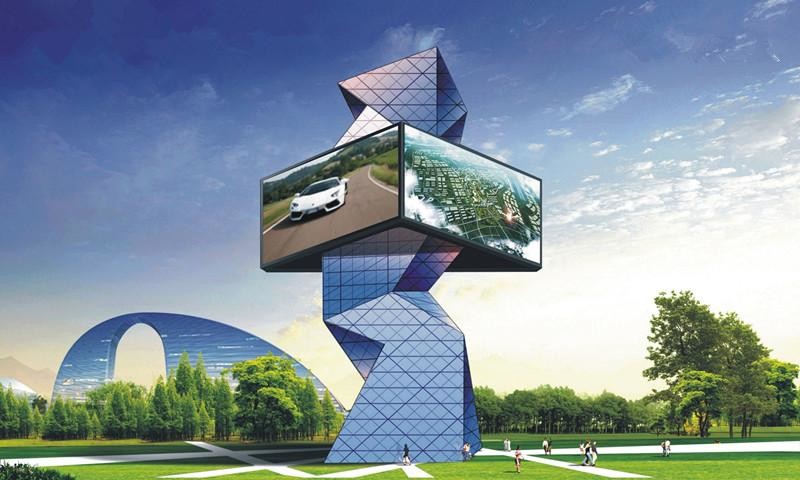

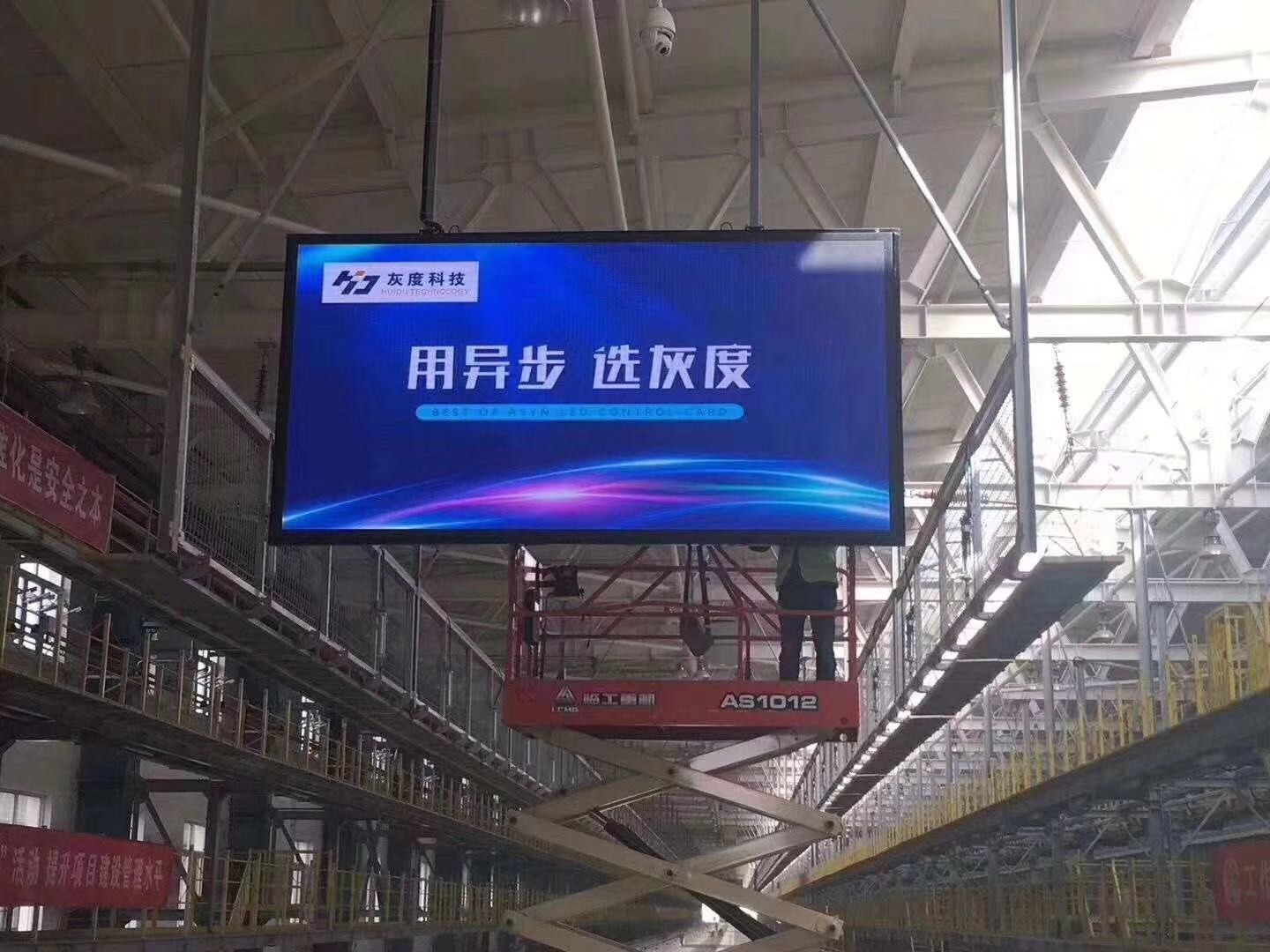

    Application

    Nationstar Chip Outdoor Full Color LED Display 6mm Pixel Pitch 6000cd/sqm BrightnessNationstar Chip Outdoor Full Color LED Display 6mm Pixel Pitch 6000cd/sqm Brightness

    Certificate


    FAQ

    1. How long could i receive the inquiry reply ?
    A: You will get a reply within 12 hours.

    2.How to proceed an order for led display?
    A:Firstly let us know your requirements or application
    Secondly we quote according to your requirements or our suggestions.
    Thurdly customer confirms the design document and places deposit for formal order.
    Fourthly we arrange the production

    3.What kind of led display do you offer ?
    A: Different product offer different time frame warranty, but all product here we offer 2 year at least warranty

    4.How long will it take to deliver goods ?
    A: We will start preparing goods when we get your bank receipt. The package will be shipped out in 1-2 working days after we get
    your payment.

    5.How is the after sales service ?
    A: We have a professional team which is in all around the world , also a service hot-line dealing with your complains and
    feedback.We also offer 24-hour online service to help you solving problems
