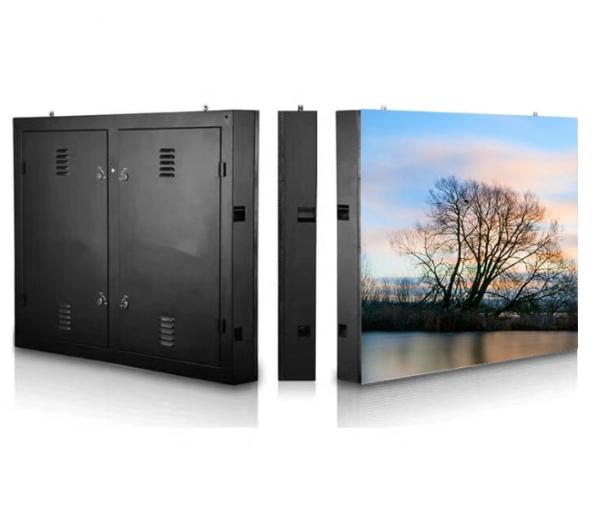

P8 P10 high quality high brightness waterproof full color outdoor
advertising led screen
Product features
1. Outdoor LED display is of high brightness, with a general
brightness of 5500cd and a maximum brightness of more than 10000cd.
Even under the irradiation of strong light, it can be clearly seen
with good display effect.
2. As a kind of advertising media, outdoor LED display screen has a
variety of forms of advertising, which is more ornamental, wider
and more attractive than traditional advertising.
3. Outdoor LED display advertising content update speed is fast,
the administrator can change the display advertising content at any
time according to the actual situation, the operation is relatively
simple.
4. Outdoor LED display has good waterproof performance, strong uv
resistance, protection grade above IP65, and can deal with all
kinds of bad weather.
5. Green environmental protection, outdoor LED display is the main
light emitting device LED beads, it is made of non-toxic materials,
unlike fluorescent lights containing mercury will cause pollution,
and LED can also be recycled.
6. Energy conservation and environmental protection, outdoor LED
display not only energy conservation and environmental protection,
all-weather work, can fully adapt to a variety of outdoor harsh
environment, with anti-corrosion, waterproof, moisture-proof,
lightning, shockproof and other characteristics.
7. Low power consumption, LED power consumption is quite low,
generally speaking, the working voltage of LED is 2-3.6v. The
operating current is 0.02-0.03a. That is, it consumes no more than
0.1w of electricity.
8. Long service life. Under the right current and voltage, the
service life of LED can reach 100,000 hours. Considering the use
environment of outdoor LED display, the service life of the display
is generally less than 10 hours due to environmental factors, but
about 60,000 hours can be achieved.
9. Seamless splicing, high refresh rate, outdoor LED display
compared with LCD splicing, there is no gap, the display effect is
more beautiful, and outdoor LED display has a relatively high
refresh frequency, the whole picture is more delicate, the overall
visual effect is more shocking and gorgeous!
Product specification
| Unit Module | Item | Parameter |
| Model Number | P8-4S |
| Module size | 256mm*128mm |
| Pixel pitch | 8mm |
| Pixels Density | 15625dots/m2 |
| Pixel configuration | 1R1G1B |
| Package mode | SMD3535 |
| Pixel resolution | 32dots(W)*16 dots(H) |
| Max Power | 35W |
| Module thickness | 17.05mm |
| Weight | 0.343kg |
| Drive type | Constant drive |
| Scan mode | 1/4scan |
| Port type | HUB75-A |
| Brightness of white balance | ≥6500cd/m2 |
LED Cabinet | Dimension | 768X768mm |
| Monomer Module Number | 18piece |
| Power supply | 5V/60A*3 pcs or 5V40A 4pcs |
| Thermal discharge | |
| Pixel per cabinet | 128X128dots |
| Best viewing distance | 8M～40M |
| Best viewing angle | 160°(W) 120°(H) |
| Temperature | storage:-35℃～+85℃ working:-20℃～+50℃ |
| Relative humidity | 10%-95% |
| Thickness | 135mm |
| Power | Working voltage | AC220V±10% |
| Average Power consumption | 280W/㎡ |
| Max.Power consumption | ≤700W/㎡
|
| Current | ≤20mA(single LED) |
| Control system | CPU | Pentium4 or above P4 |
| Operation system | WIN98/2000/NT/XP/WIN7 |
| Control method | Synchronization |
Main technical parameter | Driving device | Constant drive IC |
| Refresh frequency | ≥1200HZ |
| Grey scale/colors | 4096 16.7M 4096gray level/16.7M colors |
| MTBF | ≥9000hours |
| Power switch | Automatic switch |
| Display Mode | ≥800*600/1024*768 |
Our projects
Product highlight
Our service
Our customer service department has more than a dozen highly
skilled and experienced technical support engineers, who are all in
charge of the technical support of all LED display products we
provide all over the world.
We are continuously improving upon our level of service and quality
to quickly and effectively meet customer needs and guarantee their
benefits and interests.
Service concept
We believe in taking the initiative, maintaining honesty and
trustworthiness, which means we will respond quickly to customer
questions and do everything possible to meet customer demands.
Service content
1. 24-hour hotline service, including counseling and technical
guidance.
2. On-line service.
3. Failure maintenance of LED panels.
4. Free professional technical training
5. Paid software upgrade.
6. Warranty service.
7. Engineering technical service.
Warranty period
Each of our LED display products comes with at least three years
warranty and a lifetime maintanance services.
FAQ
Q1:What's the min order quantity?
A: LED screen 1 sqm / LED module 100pcs
Q2: What is the payment method?
A:We support a variety of payment methods. Normally by T/T,30% down
payment,70% balance paid before shipping.
Q3: Is it ok to print my logo on led display product?
A: Yes, of course. If you need, pls inform us before our
production.
Q4: How long is the delivery time?
A: It's about 15-25days after confirmation of the order.
Q5: How do you ship the goods and how long does take to arrive?
A: We usually ship by sea or air. By sea is about 30-40days; by air
is about 3-7days.
Q6: What's the control system do you use?
A: Our standard control system is Linsn or Novastar. Also support
other controlling system, like Huidu,Sheenled,Colorlight etc.
Q7: Do you have any certification for LED display?
A: Yes, we have CE,ROHS,FCC certification.
Q8: How about the guarantee of led display?
A: We guarantee all our displays, modules, spare parts for two
years.
During this time, we will replace or remand our goods for free if
there is something wrong with them.
