P2.5 Full Color Indoor Advertising Led Screen HD Die Casting Aluminum Cabinet

Melton optoelectronics co., LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap P2.5 Full Color Indoor Advertising Led Screen HD Die Casting Aluminum Cabinet from wholesalers

    Buy cheap P2.5 Full Color Indoor Advertising Led Screen HD Die Casting Aluminum Cabinet from wholesalers
    • Buy cheap P2.5 Full Color Indoor Advertising Led Screen HD Die Casting Aluminum Cabinet from wholesalers
    • Buy cheap P2.5 Full Color Indoor Advertising Led Screen HD Die Casting Aluminum Cabinet from wholesalers
    • Buy cheap P2.5 Full Color Indoor Advertising Led Screen HD Die Casting Aluminum Cabinet from wholesalers

    P2.5 Full Color Indoor Advertising Led Screen HD Die Casting Aluminum Cabinet

    Ask Lasest Price
    Brand Name : MLED
    Model Number : P2.5
    Certification : CE/ROHS
    Price : USD 650-700 Per Square Meter
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 1000 Square Meter Per Month
    Delivery Time : 1-7 days
    • Product Details
    • Company Profile

    P2.5 Full Color Indoor Advertising Led Screen HD Die Casting Aluminum Cabinet

    Die-casting aluminum cabinet hd p2.5 full color indoor advertising led screen

    1, safety :LED display is different is the use of low-voltage dc supply voltage, it is very safe in use.
    2. Hardness: the LED display adopts FPC as the substrate, with appropriate hardness.
    3, high life :LED display in the same working environment and long conditions, compared with other outdoor advertising, its life is much longer
    4. Energy saving: compared with the traditional LED display, the LED display shows a good energy saving, low power and more significant effect. For all large LED display manufacturers, this is the first element to have.
    5. Easy installation: because of the material and structure of LED display screen, it is light and convenient, which provides very convenient conditions for installation.
    6. Vivid color :LED display adopts high brightness patch, which is vivid and soft, and will not harm human eyes, and the brightness is also high.
    7, green environmental protection: the material is made of environmental protection material, which can be recycled, processed and reused, and won't pollute the environment.
    8. Low heat: the biggest safety hazard of LED display is that when it works continuously for a long time, the high heat generated will reduce the service life of the equipment, or even cause serious fire. LED display in the heat up and down a lot of work, efficient heat dissipation processing plus its own electronic components is low power consumption, the heat will not be too high, naturally ruled out the occurrence of this hidden trouble.
    9. Wide application :LED display screen is often used in various fields and various industries due to its light and light weight, excellent quality and effect, and moderate price of LED display screen. If it is more advanced in the future, its coverage will be more extensive!

    Product parameter

    Item
    Parameter
    Unit Module
    P2.5-32SModel Number
    P2.5-32S
    160mm*160mmModule size
    160mm*160mm
    Pixel pitch
    2.5mm
    Pixels Density
    160000dots/sqm
    Pixel configuration
    1R1G1B
    Package mode
    SMD2121
    Pixel resolution
    64dots(W)*64 dots(H)
    Port type
    HUB75
    Max Power
    32W
    Module thickness
    17.05mm
    Weight
    0.25kg
    Drive type
    Constant drive
    Scan mode
    1/32scan
    Brightness of white balance
    ≥1000cd/sqm
    LED
    Cabinet
    Dimension
    480mm*480mm
    Monomer Module Number
    9
    Power supply
    5V/40A*1 pcs
    Thermal discharge
    fan 0pcs
    Pixel per cabinet
    192mm*192mm
    Best viewing distance
    10M~50M
    Best viewing angle
    160°(W) 120°(H)
    Temperature
    storage:-35℃~+85℃
    working:-20℃~+50℃
    Relative humidity
    10%-95%
    Thickness
    85mm
    power
    Working voltage
    AC220V±10%
    Average Power consumption
    487W/㎡
    Max.Power consumption
    ≤1200W/㎡
    Current
    ≤20mA(single LED)
    Control system
    CPU
    Pentium4 or above P4
    Operation system
    WIN98/2000/NT/XP/WIN7
    Control method
    Synchronization
    Main technical
    parameter
    Driving device
    Constant drive IC
    Refresh frequency
    ≥3600HZ
    Grey scale/colors
    4096gray level/16.7M colors
    MTBF
    ≥9000hours
    Fire rate
    Automatic switch
    Display Mode
    ≥800*600/1024*768

    How it operate

    P2.5 Full Color Indoor Advertising Led Screen HD Die Casting Aluminum Cabinet

    Product advantages

    P2.5 Full Color Indoor Advertising Led Screen HD Die Casting Aluminum Cabinet

    Wide sight distance

    .the indoor viewing Angle can be more than 160 degrees, and the outdoor viewing Angle can be more than 120 degrees. The size of the viewing Angle depends on the shape of the LED. The screen area of the display screen can be large or small, as small as less than one square meter, large can reach hundreds, thousands of square meters;
    P2.5 Full Color Indoor Advertising Led Screen HD Die Casting Aluminum Cabinet

    High refresh rate

    Indoor P2.5 has small pitch resolusion, so it can show us a very clear picture.

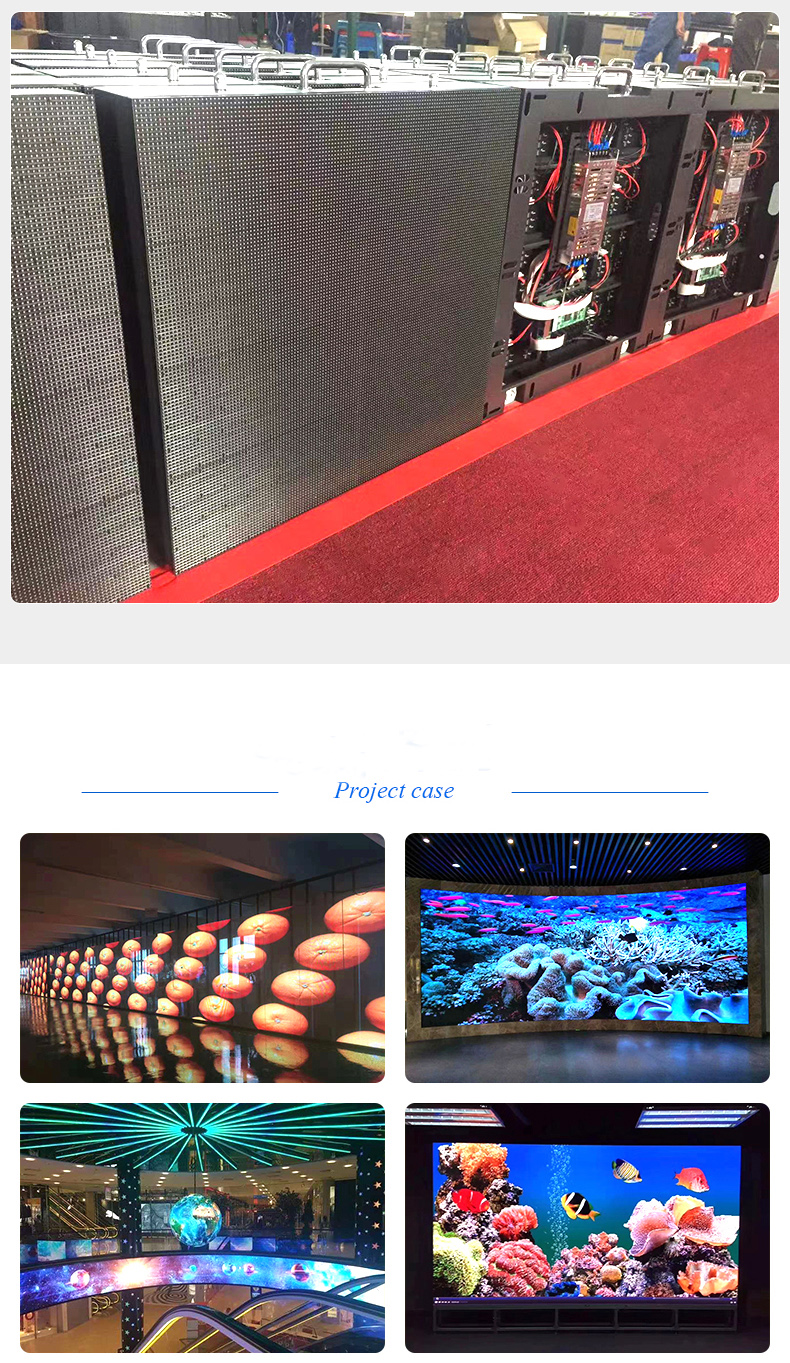

    Our projectsP2.5 Full Color Indoor Advertising Led Screen HD Die Casting Aluminum Cabinet

    Packing & delivery

    Our goods are packed with wooden case, flight case or according customer's request. Usually fixed installation led display use wooden case and die casting rental led display use flight case.
    Carton box:It is the cheapest packing method for the led display,which is mainly for the small screen and short shipping distance. Wooden case:Wooden case is only for one time using transportation. After unpack, it cannot be used any longer. For the fixed installation ledpanel system, wooden case packing is the only way and the best way for packing since the low cost and same safety level for one timeusing..
    Flight case: has wheels and handles which is for the rental use led display, to make the transportation be very convenient and protect the led display better..if your led display screen system is for the rental use, please choose the flight case for your led display screen. Delivery Within 15-25 days after receiving deposit. If your order is very urgent, you should make it clear for us to prepare..
    P2.5 Full Color Indoor Advertising Led Screen HD Die Casting Aluminum Cabinet

    Company information

    .
    P2.5 Full Color Indoor Advertising Led Screen HD Die Casting Aluminum Cabinet

    FAQ

    Q1. Can I have a sample order? A: A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
    Q2. What about the lead time? A: Sample needs 5-7 days, mass production time needs 12-25 days.
    Q3. Do you have any MOQ limit for led screen order? A: Low MOQ, 1pc for sample checking is available
    Q4. How do you ship the goods and how long does it take to arrive? A: We usually ship by express (DHL, UPS, FedEx ). It usually takes 3-5 days to arrive . Airline and sea shipping also optional.
    Q5. How to proceed an order for led display? A: Firstly let us know your requirements or application, liking project size, rental or fixed installation.Secondly We quote according to your requirements or our suggestions. Thirdly customer confirms the order and places deposit for formal order. Fourthly We arrange the finished display cabinet.
    Q6. Do you offer guarantee for the products? A: Yes, we offer 2 years warranty to our product
