high brightness energy saving durable full color outdoor p5 led
display screen
Product features
1. Outdoor LED display is of high brightness, with a general
brightness of 5500cd and a maximum brightness of more than 10000cd.
Even under the irradiation of strong light, it can be clearly seen
with good display effect.
2. As a kind of advertising media, outdoor LED display screen has a
variety of forms of advertising, which is more ornamental, wider
and more attractive than traditional advertising.
3. Outdoor LED display advertising content update speed is fast,
the administrator can change the display advertising content at any
time according to the actual situation, the operation is relatively
simple.
4. Outdoor LED display has good waterproof performance, strong uv
resistance, protection grade above IP65, and can deal with all
kinds of bad weather.

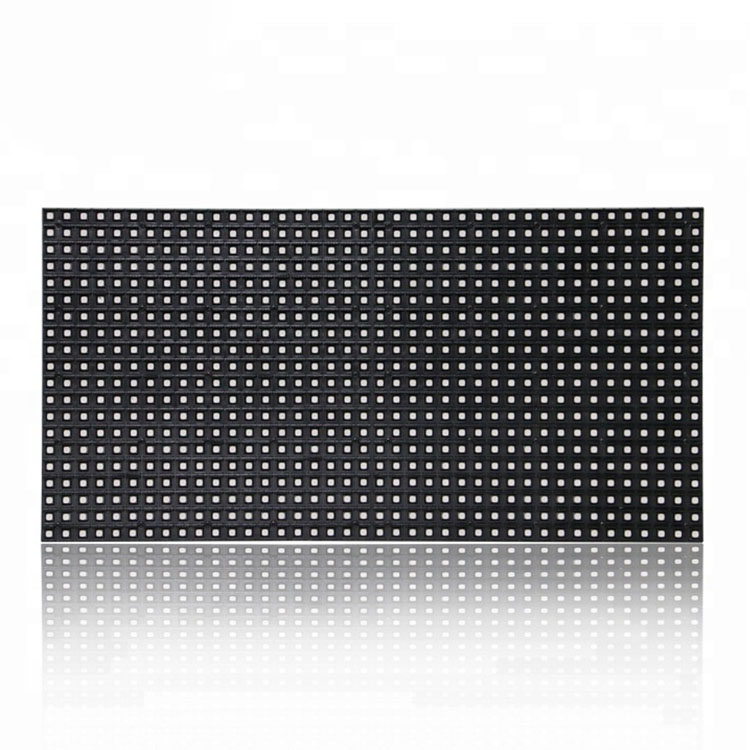

| Unit Module | Item | Parameter |
| Model Number | P5-8S |
| Module size | 320mm*160mm |
| Pixel pitch | 5mm |
| Pixels Density | 40000dots/m2 |
| Pixel configuration | 1R1G1B |
| LED Package mode | SMD1921 or 2525 |
| Pixel resolution | 64dots(W)*32dots(H) |
| Max Power | 45W |
| Module thickness | 17.05mm |
| Weight | 0.45kg |
| Drive type | Constant drive |
| Scan mode | 1/8scan |
| Port type | HUB75 |
| Brightness of white balance | ≥5500cd/m2 |
LED Cabinet | Dimension | 640mm*640mm |
| Monomer Module Number | 8pcs |
| Power supply | 5V/40A*2 pcs |
| Thermal discharge | fan 1pcs |
| Pixel per cabinet | 128mm*128mm |
| Best viewing distance | 5M～100M |
| Best viewing angle | 160°(W) 120°(H) |
| Temperature | storage:-35℃～+85℃ working:-20℃～+50℃ |
| Relative humidity | 10%-95% |
| Thickness | 85mm |
| Power | Working voltage | AC220V±10% |
| Average Power consumption | 390W/㎡ |
| Max.Power consumption | ≤980W/㎡
|
| Current | ≤20mA(single LED) |
| Control system | CPU | Pentium4 or above P4 |
| Operation system | WIN98/2000/NT/XP/WIN7 |
| Control method | Synchronization |
Main technical parameter | Driving device | Constant drive IC |
| Refresh frequency | ≥1920HZ |
| Grey scale/colors | 65536gray level/16.7M colors |
| MTBF | ≥9000hours |
Product installation ways
1, mount the common mount: suitable for single box display screen
is less than the total weight 50 kg, can be directly on the main
wall, need not set aside the maintenance space, display cabinet
adopt positive maintenance design, servicing uncovers the screen
from the bottom of the can, schematic diagram is as follows: rack
mount is applicable to the general outdoor display, considering the
difficulty of the display when maintenance, between the screen and
the metope with steel structure support, set aside 800 mm space for
maintenance, space., maintenance facilities such as gym, and
installation of power distribution cabinet, air conditioning, axial
flow fan, lighting and other auxiliary equipment.
2. Column installation column installation is suitable for the
installation of LED display screen in the open space, and the
outdoor screen is installed on the column. Column is divided into
single column and double column, in addition to the need to make
steel structure plate, also need to make concrete or steel column,
mainly considering the geological condition of the foundation
3. Insert insert structure is suitable for display screen projects
that have been included in the planning and design of buildings.
The installation space of display screen is reserved in advance
during the construction of civil engineering projects
4. Seat mounting structure is to build a wall with a concrete
structure on the ground, which is large enough to support the whole
LED display screen. A steel structure is built on the wall to
install the display screen.

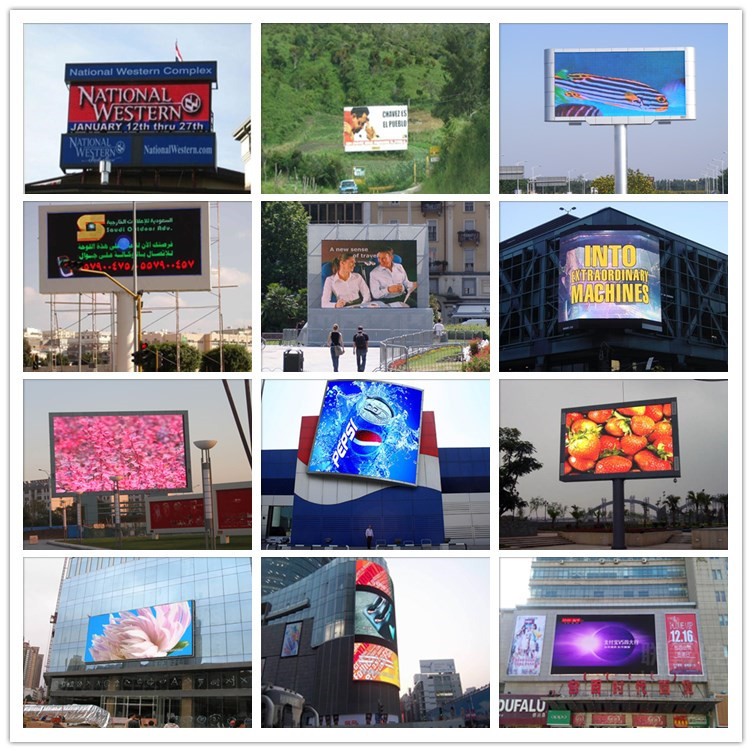

Our projects
Our company
MELTON OPTOELECTRONICS co LTD is located in Jiada Industrial Area,
Tangtou Rd,Shiyan Town,Bao'an DistitShenzhen city, Guangdong
province,China., which covers an area of over 3500 square meters,
Droductionworkshop 2500 square meters. With 10 high-speed SMT
machine,
and automatic production technoloay isadopted to ensure the quality
of the product. Annual production of 86000 square meters. Annual
sales of
200million yuan. Is a set research and development, production,
sales, service as one of the LED display high-techenterprises.
Company's main
door inside and outside the full color LED display screen,
supporting all kinds ofiron,aluminum, chemical fiber, such as
housing. In the small
distance between hd display and outdoor highlighted the domestic
leading technology.
FAQ
Q1: What does it mean pixel pitch 6mm, 8mm, 10mm etc?
A: It means each two neighboring pixel distance is 6mm, 8mm, 10mm.
Different pixel pitch has different resolution, pixel pitch is
smaller, led screen resolution is higher.
Q2: How long is the production time/delivery time?
A: If less than 100 square meters, production time is 7-15 working
days.
Q3: How about the warranty time?
A: Our products warranty is 2 full years. During thie period, if
any of our led screen part not working(except for led module, and
damaged not by man-made), we send you new part to replace. We pay
half shipping cost.
Q4: Can you guide us how to use the led screen?
A: Of course. We will offer you insllation video or manual,
software manual. If you still don't know how to use, our engineer
can help you by remote control. Besides, we can also send our
engineer to your place to guide you how to use.
