    1R1G1B Outdoor Full Color Led Screen High Brightness P5 45W 2 Years Warranty

    Ask Lasest Price
    Brand Name : P5
    Model Number : P5
    Certification : CE,CE UL RoHS,FCC
    Price : 14.5USD/PC
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 10000PC per Month
    Delivery Time : 2-3 days
    • Product Details
    • Company Profile

    1R1G1B Outdoor Full Color Led Screen High Brightness P5 45W 2 Years Warranty

    Outdoor Advertising P5 full color led screen High Brightness led display


    TECHNICAL PARAMETERS


      Unit ModuleItemParameter
    Model NumberP5-8S
    Module size320mm*160mm
    Pixel pitch5mm
    Pixels Density40000dots/m2
    Pixel configuration1R1G1B
    LED Package modeSMD1921 or 2525
    Pixel resolution64dots(W)*32dots(H)
    Max Power45W
    Module thickness17.05mm
    Weight0.45kg
    Drive typeConstant drive
    Scan mode1/8scan
    Port typeHUB75
    Brightness of white balance≥5500cd/m2

    LED

    Cabinet

    Dimension640mm*640mm
    Monomer Module Number8pcs
    Power supply5V/40A*2 pcs
    Thermal dischargefan 1pcs
    Pixel per cabinet128mm*128mm
    Best viewing distance5M~100M
    Best viewing angle160°(W) 120°(H)
    Temperature

    storage:-35℃~+85℃

    working:-20℃~+50℃

    Relative humidity10%-95%
    Thickness85mm

       PowerWorking voltageAC220V±10%
    Average Power consumption390W/㎡
    Max.Power consumption

    ≤980W/㎡


    Current≤20mA(single LED)
      Control systemCPUPentium4 or above P4
    Operation systemWIN98/2000/NT/XP/WIN7
    Control methodSynchronization

    Main technical

    parameter

    Driving deviceConstant drive IC
    Refresh frequency≥1920HZ
    Grey scale/colors65536gray level/16.7M colors
    MTBF≥9000hours
    Power switchAutomatic switch
    Display Mode≥800*600/1024*768

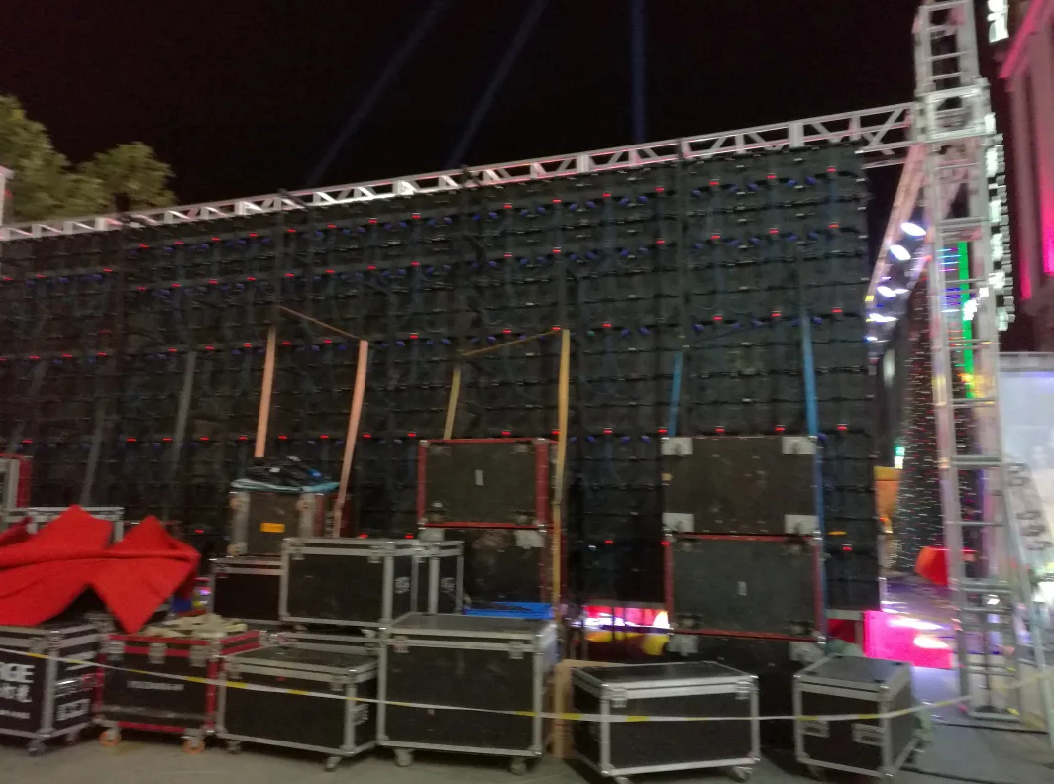

    PICTURES



    COMPANY INFORMATION


    Melton is a professional manufacturer of Led Module/ Indoor Outdoor LED Display//Rental Stage Led Display/Led Strip Display/Taxi Top Led Display/Lamp Pole Led Display/ Led Billboard in Shenzhen


    Our Company: Melton covers 2000square meters with super clean, antistatic workshop, the most advanced equipment, patching, soldering tin, gluing, aging and testing, have own patented technology.

    Our products: are CE approved, RoHS compliant, C-TICK and FCC certificated

    We have been exported toUSA,Canada,Argentina,Brazil,Ecuador,Venezuela,Honduras,Germany,Spain,Moldova,Poland,Netherlands,Russia,Sweden,France,Belgium,Turkey,Israel,Saudi Arabia, South Africa, Uganda, Egypt, Angola, India, Vietnam, Thailand, New Zealand, Australia and other 50 countries and regions, and gained a great reputation from customers.


    FAQ


    Q1,How to arrange payment?

    Our payment terms in usually is T/T payment, for sample and small order,Western union,Paypal or Moneygram also be acceptable


    Q2,What is our warranty?

    Our warranty from 5year to 1year basis on different type led screen,In usually every screen we will ready more extra led screen moduless as spare modules,if some modules happen fails,you can replace the fail modules by our spare modules,When all the spare modules use out,You can send back these modules to us for repair,and we will send to you after repair and testing&aging well


    Q3,How to be our distributor?

    To be our distributor,We can share our profit together with you in every year,Also we can send our engieer or sales to your compay to support your business,also for led screen after-service,We will together with you to the after-service in the whole led screen life time


    Q4, How to maintence led screen?

    In usually every year to maintence led screen one time,clear the led mask,checking the cables connection,if any led screen modules fail,you can replace it with our spare modules
