    High Brightness Led Display Billboard 3G Wifi Street Light Advertising Pole Outdoor

    Ask Lasest Price
    Brand Name : MLED
    Model Number : P6
    Certification : CE/RoHS
    Price : USD 605-700 Per Square Meter
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 1000 Square Meter Per Month
    Delivery Time : 5-7Days
    • Product Details
    • Company Profile

    High Brightness Led Display Billboard 3G Wifi Street Light Advertising Pole Outdoor

    outdoor P6 high brightness 3G/wifi street light advertising pole led display/ billboard

    Product advantages

    1. Large scale of networking, unlimited number of LED display screens;


    2. The program is played synchronously, with better visual effect;


    3. Supporting data center server software, it can centralize the management of all LED displays, control group screens and check the online status in real time.


    4. Fast transmission speed, suitable for sending videos, animations, pictures and other programs.


    5, can install audio, monitoring, USB charging, etc.;


    6, not limited by distance, easy installation and maintenance;


    7. The modular design of the product facilitates maintenance and repair.


    8. 3G/4G CARDS are universal.


    9. A variety of exterior designs can enhance the image of the city, add color to the city and attract people to stop.


    10. Build a smart city to facilitate citizens' travel.


    Product parameter

    Unit ModuleItemParameter
    Model NumberP6-8S

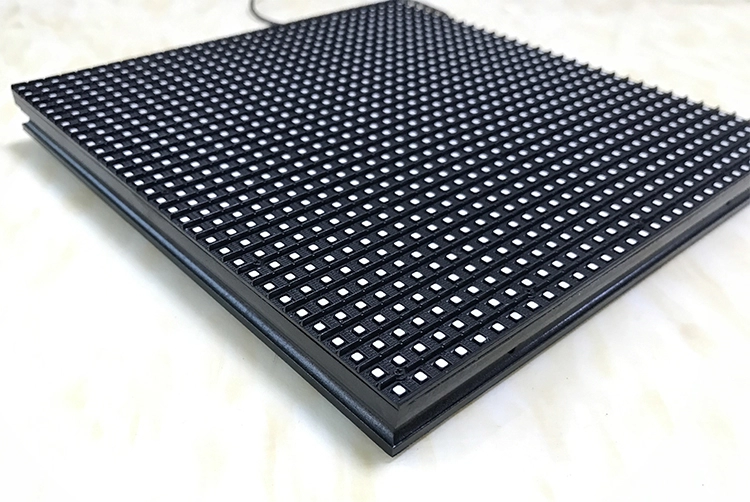

    Module size192mm*192mm
    Pixel pitch6mm
    Pixels Density27777点/m2
    Pixel configuration1R1G1B
    Package modeSMD3535
    Pixel resolution32dots(W)*32 dots(H)
    Max Power22W
    Module thickness22mm
    Weight0.56kg
    Drive typeConstant drive
    Scan mode1/8scan
    Port typehub75
    Brightness of white balance≥6000cd/m2

    LED

    Cabinet

    Dimension576mm*576mm
    Monomer Module Number9
    Power supply5V/80A*1 pcs or 5V60A 1pcs
    Thermal dischargefan 1pcs
    Pixel per cabinet96mm*96mm
    Best viewing distance6M~40M
    Best viewing angle160°(W) 120°(H)
    Temperature

    存贮storage:-35℃~+85℃

    工作working:-20℃~+50℃

    Relative humidity10%-95%
    Thickness125mm
    PowerWorking voltageAC220V±10%
    Average Power consumption480W/㎡
    Max.Power consumption

    ≤1200W/㎡


    Current≤20mA(single LED)
    Control systemCPUPentium4 or above P4
    Operation systemWIN98/2000/NT/XP/WIN7
    Control methodSynchronization

    Main technical

    parameter

    Driving deviceConstant drive IC
    Refresh frequency≥1200HZ
    Grey scale/colors4096gray level/16.7M colors
    MTBF≥9000hours
    Fire rateGrade one
    Display Mode≥800*600/1024*768

    Work principle


    Our project

    Our company
    MELTON OPTOELECTRONICS co LTD. Is located in Jiada Industrial Area, Tangtou Rd,Shiyan Town,Bao'an DistitShenzhen city, Guangdong province,China., which covers an area of over 3500 square meters, Droductionworkshop 2500 square meters. With 10 high-speed SMT machine, and automatic production technoloay isadopted to ensure the quality of the product. Annual production of 86000 square meters. Annual sales of 200million yuan. Is a set research and development, production, sales, service as one of the LED display high-techenterprises. Company's main door inside and outside the full color LED display screen, supporting all kinds ofiron,aluminum, chemical fiber, such as housing. In the small distance between hd display and outdoor highlighted the domestic leading technology.
    After service
    Technical service
    (1) Provide installation training, be able to achieve the system installation and maintenance;
    (2) We are responsible for the training of your staff's use;
    (3) 1.5% Spare parts free of charge which are complete module or power supply, through training, the user can easily replace the spare parts, so as to ensure the normal operation of the system;
    (4) Warranty: 2 years
