Front opening maintenance foldable led screen p8 outdoor
advertising led display screen/ led panel screen
Product advantages
1.SMD 3-in-1 LED encapsulation confirms the high brightness, high
definition, seamless and flatness.
2. Good protection level waterproof IP65, anti-corrosion, oxidation
resistance, long life span.
3. Wide viewing distance, high definition, good uniformity.
4.Brightness can be adjusted automatically according to different
surroundings by led studio.
5. Can be mounted on the wall, by pole support on the street, on
top of building, etc.
6. Support all types of video, graphics, animation, message, etc,
support PC online or offline.
7. Also can remote control with linsn asynchronous system, or Wifi
control, 3G control.
| Speific name | Outdoor front service power save led screen module detail datasheet |
| P6.67 front open | P8 front open | P10 front open |
| module | Pixel pitch | 6.67mm | 8mm | 10mm |
| Module size(L*H) | 320mmX320mm |
| Resolution(L*H) | 48*48 | 40*40 | 32*32 |
| density | 22477dot/m2 | 15625dot/m2 | 10000dot/m2 |
| Pixel config | SMD2727 | SMD3535 | |
| Driver Methon | 1/6S | 1/5S | 1/2S |
| Power current | 11.2A | 11.3A | 11.5A |
| Weight | 2100g | 2010g | 2050g |
| Interface | |
| cabinet | Cabinet size(L*H) | |
| Resolution(L*H) | 144*144 | 120*120 | 96*96 |
| Brightness | 5500cd/m2 | 5200cd/m2 | 5800cd/m2 |
| View angle(H/v) | 120°/ 120° |
| Gray Scale | 14bit |
| Temperature color | 6500-12000K |
| refresh rate | 1920HZ |
| Maxium power | 450W/m2 |
| Average power | 200W/m2 |
| blind rate | ≤0.1‰ |
| Control method | Sycrhonous control way |
| Power input | AC90-240V |
| Power voltage | DC2.8/3.8V |
| working temperature | -20~50℃ |
| working humidity | 10%~90% |
| Cabinet dimentsion | 0.9216m2 |
| Weight | 28KG or 35KG |
| material | Megnesium or Steel Iron |
| IP degrade | IP65/IP54 |
| Maintence way | Front service Product details |

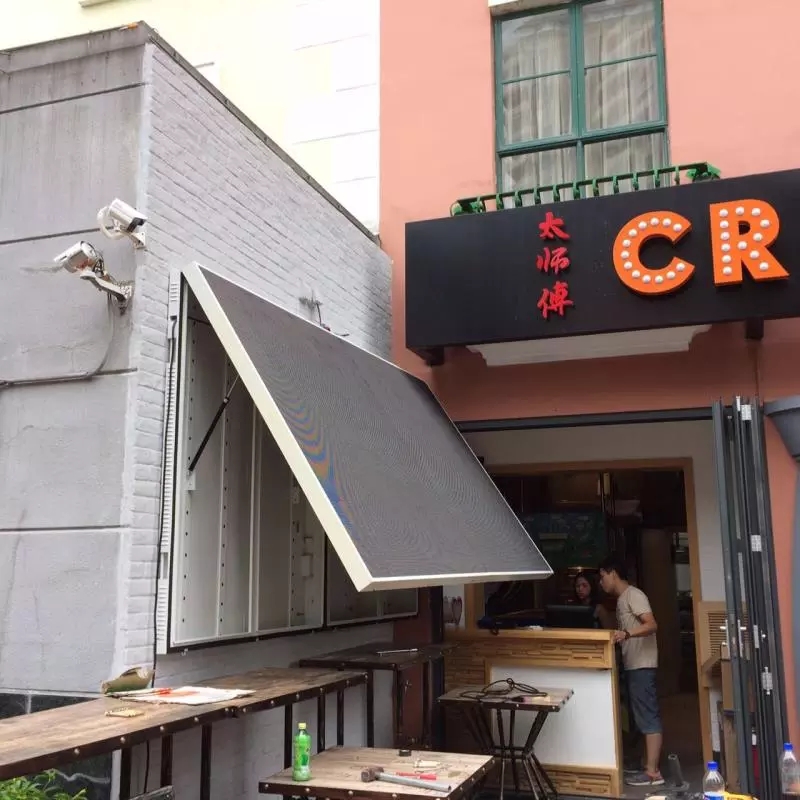

The difference between front service and post service led display
The front service led display:
1. Magnetic column for front maintenance, convenient for
maintenance;
2. The display screen in front of the mapp luster maintenance is
thin, does not take up space, saves materials, light weight, easy
to install, suitable for indoor screen installation, directly
hanging on the wall, easy to maintain.
3. The front maintenance is generally installed on the wall, and it
can't be repaired from the back of the screen, just remove the
module with problems from the front of the screen for maintenance
The post service led display:
1. Copper post for rear maintenance, cheap
2. It is generally used for outdoor screen after maintenance,
because the outdoor screen cannot be removed from the front for the
sake of waterproof, and the cost of the outer frame is high
3. The front and rear maintenance of the box body are screws, which
are generally of a rear maintenance type with good waterproof
effect. The front maintenance box body is used in the outdoor area
where there is no repair space on the back
Our project
FAQ
1.How can I place an order?
Please provide the details of your requirement for Led screen,
like:
A.Indoor or outdoor Led screen you prefer?
B.What’s the width and height ?
C.Fixed or rental installation?
Once receive your requirement ,will send you quotation, for further
discussion,
had better to contact with us in the e-mail , WhatsApp or skype.
2.What kind of led display we provide?
We can provide many types of led screen: for example: indoor Led
screen,
outdoor Led screen, fixed led screen, rental led screen, led
poster, irregular Led screen ect.
3.What about delivery time for the order?
7~25 days, depends on the detailed requirements.
4.How about the warranty?
We have 2 years warranty and lifelong maintenance
