    DIP/SMD hd rental p4 p5 p6 p8 p10 outdoor stage backdrop led screen/ led display panle

    Ask Lasest Price
    Brand Name : MLED
    Model Number : P8
    Certification : CE/RoHS
    Price : USD 455-470 Per Square Meter
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 1000 Square Meter Per Month
    Delivery Time : 1-7 days
    • Product Details
    • Company Profile

    DIP/SMD hd rental p4 p5 p6 p8 p10 outdoor stage backdrop led screen/ led display panle

    DIP/SMD hd rental p4 p5 p6 p8 p10 outdoor stage backdrop led screen/ led display panle

    Outdoor rental led display features

    1. Ultra light:the weight of a single box is about 6kg, which can be carried by a single person and installed with exceptional ease;


    2. Ultra thin:box body is made of die casting aluminum forming, high strength, high tenacity, high precision, it is not easy deformation,


    3. High precision:the size is mechanical and electrical machining accurate to about 0.1mm;


    4. Compatibility:new structure design, to meet hoisting and stacking requirements, and to meet indoor and outdoor requirements;

    5. Fast: the box body up and down the left and right connection adopts fast lock structure, usually 10 seconds to complete the installation of a box body, and the installation accuracy is high;
    6. Low cost: the box is light in weight and requires low installation cost; Low box power consumption, save operating cost, reduce labor cost.
    Product parameter
    Unit ModuleItemParameter
    Model NumberP8-4S
    Module size256mm*128mm
    Pixel pitch8mm
    Pixels Density15625dots/m2
    Pixel configuration1R1G1B
    Package modeSMD3535
    Pixel resolution32dots(W)*16 dots(H)
    Max Power35W
    Module thickness17.05mm
    Weight0.343kg
    Drive typeConstant drive
    Scan mode1/4scan
    Port typeHUB75-A
    Brightness of white balance≥6500cd/mm

    LED

    Cabinet

    Dimension768X768mm
    Monomer Module Number18piece
    Power supply5V/60A*3 pcs or 5V40A 4pcs
    Thermal discharge
    Pixel per cabinet128X128dots
    Best viewing distance8M~40M
    Best viewing angle160°(W) 120°(H)
    Temperature

    storage:-35℃~+85℃

    working:-20℃~+50℃

    Relative humidity10%-95%
    Thickness135mm
    PowerWorking voltageAC220V±10%
    Average Power consumption280W/㎡
    Max.Power consumption

    ≤700W/㎡


    Current≤20mA(single LED)
    Control systemCPUPentium4 or above P4
    Operation systemWIN98/2000/NT/XP/WIN7
    Control methodSynchronization

    Main technical

    parameter

    Driving deviceConstant drive IC
    Refresh frequency≥1200HZ
    Grey scale/colors

    4096 16.7M

    4096gray level/16.7M colors

    MTBF≥9000hours
    Power switchAutomatic switch
    Display Mode≥800*600/1024*768

    Packing & Delivery


    As for the payment ,we have several choices to choose for customer, we try our best to meet the customers' requirement as possible as we can.

    Carton box:It is the cheapest packing method for the led display,which is mainly for the small screen and short shipping distance.
    Wooden case:Wooden case is only for one time using transportation. After unpack, it cannot be used any longer. For the fixed installation ledpanel system, wooden case packing is the only way and the best way for packing since the low cost and same safety level for one timeusing..
    Flight case: has wheels and handles which is for the rental use led display, to make the transportation be very convenient and protect the led display better..if your led display screen system is for the rental use, please choose the flight case for your led display screen.



    Our projects
    exporttoUSA,Canada,Argentina,Brazil,Ecuador,Venezuela,Honduras,Germany,Spain,Moldova,Poland,Netherlands,Russia,Sweden,France,Belgium,Turkey,Israel,Saudi Arabia,South Africa,Uganda,Egypt,Angola,India,Vietnam,Thailand,New Zealand,Australia and other 50 countries and regions,and gaineda great reputation from customers.

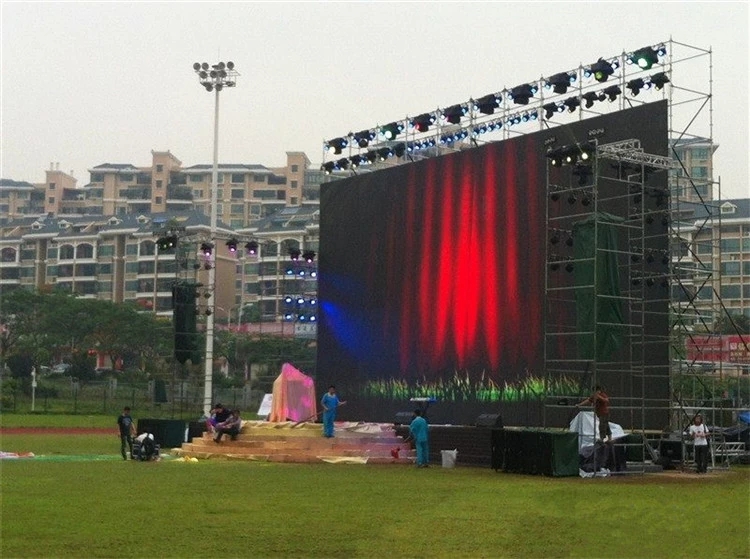

    Following are some projects photos.



    Our service

    We have an excellent customer service system with a well-trained, strong and skilled service team to provide customers with a comprehensive pre-sales service, product services and after-sales service.

    Our customer service department has more than a dozen highly skilled and experienced technical support engineers, who are all in charge of the technical support of all LED display products we provide all over the world.

    We are continuously improving upon our level of service and quality to quickly and effectively meet customer needs and guarantee their benefits and interests.


    Service concept
    We believe in taking the initiative, maintaining honesty and trustworthiness, which means we will respond quickly to customer questions and do everything possible to meet customer demands.


    Service content
    1. 24-hour hotline service, including counseling and technical guidance.
    2. On-line service.
    3. Failure maintenance of LED panels.
    4. Free professional technical training
    5. Paid software upgrade.
    6. Warranty service.
    7. Engineering technical service.


    Warranty period
    Each of our LED display products comes with at least three years warranty and a lifetime maintanance services.
