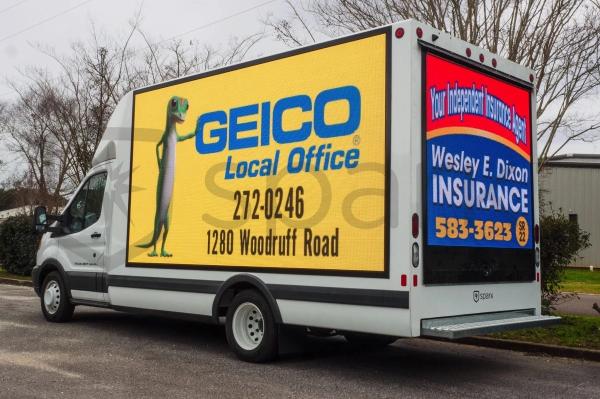

P5 Outdoor LED Display Screen Wall Truck LED Mobile Billboard Trailer AC220V/110V

Melton optoelectronics co., LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap P5 Outdoor LED Display Screen Wall Truck LED Mobile Billboard Trailer AC220V/110V from wholesalers

    Buy cheap P5 Outdoor LED Display Screen Wall Truck LED Mobile Billboard Trailer AC220V/110V from wholesalers
    • Buy cheap P5 Outdoor LED Display Screen Wall Truck LED Mobile Billboard Trailer AC220V/110V from wholesalers
    • Buy cheap P5 Outdoor LED Display Screen Wall Truck LED Mobile Billboard Trailer AC220V/110V from wholesalers
    • Buy cheap P5 Outdoor LED Display Screen Wall Truck LED Mobile Billboard Trailer AC220V/110V from wholesalers
    • Buy cheap P5 Outdoor LED Display Screen Wall Truck LED Mobile Billboard Trailer AC220V/110V from wholesalers

    P5 Outdoor LED Display Screen Wall Truck LED Mobile Billboard Trailer AC220V/110V

    Ask Lasest Price
    Brand Name : Melton
    Model Number : P5
    Certification : CE ROHS
    Price : USD11.74-USD17.83 per pc
    Payment Terms : T/T, L/C, D/A
    Supply Ability : 3000pcs per month
    Delivery Time : 5-15days
    • Product Details
    • Company Profile

    P5 Outdoor LED Display Screen Wall Truck LED Mobile Billboard Trailer AC220V/110V

    P5 Outdoor LED Display Screen Wall Truck LED Mobile Billboard Trailer AC220V/110V

    Product Description

    LED parameters

    ItemLuminous IntensityView Angle(H/V)WavelengthTest Condition
    Red LED700-910mcd160°/140°620-630nm25℃,20mA
    Green LED1500-1894mcd160°/140°520-535nm25℃,20mA
    Blue LED325-403mcd160°/140°465-475nm25℃,20mA

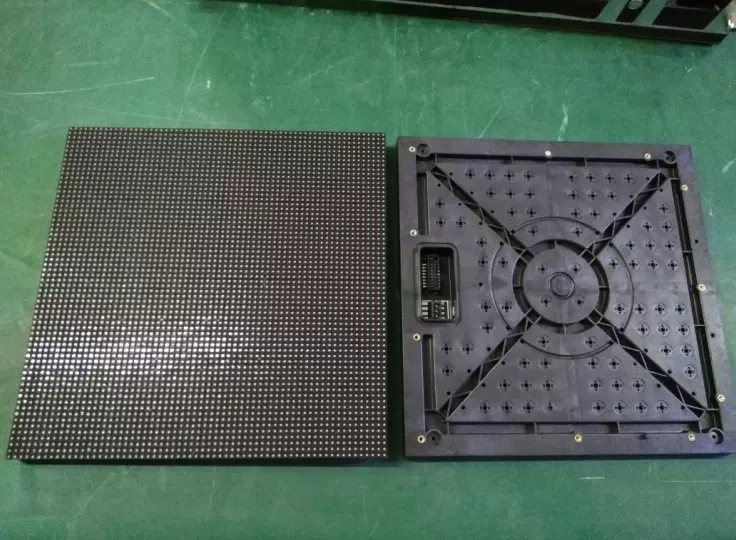

    Module Parameters

    ItemParameter
    Model numberP5-8S
    Module size160x160mm
    Pixel pitch5mm
    Pixel density40000dots/m2
    Pixel configuration1R1G1B
    Package modeSMD2727
    Pixel resolution32dots(W)*32dots(H)
    Max Power50W
    Module thickness17.05mm
    Weight0.25kg
    Drive typeconstant drive
    scan mode1/8scan
    Port typehub75
    Brightness of white balance≥7000cd/m2

    Cabinet Parameters

    Dimension640mm*640mm
    Monomer Module Number16
    Power supply5V60A 2pc
    Thermal dischargefan 1pc
    Pixel per cabinet128*128mm
    Best viewing distance5M~100M
    Best viewing angle160°(W)120°(H)
    Temperature

    storage:-35°C~+85°C

    working:-20°C~+50°C

    Relative humidity10%~95%
    Thickness85mm

    Screen Parameters

    PowerWorking voltageAC220V±10%
    Average Power consumption390W/m2
    Max Power consumption≤980W/m2
    Current≤20mA(single LED)
    Control systemCPUPentium4 or above P4
    Operation systermWIN98/2000/NT/XP/WIN7
    Control methodSynchronization
    Main technical parameterDriving deviceConstant drive IC
    Refresh frequency≥1920HZ
    Grey scale/colors4096 gray level/16.7M colors
    MTBF≥9000hours
    Fire rategrade one
    Display Mode≥800*600/1024*768

    The Lifting Handles with Humanity Design

    When lifting the cabinet people can feel more comfortable and relaxed.
    Support 1 Person to Climb to Finish Maintenance
    If there are an issue with a cabinet, you can climb to this cabinet and take the back cover off from cabinet.

    The cabinet is custom made and has very good precision.


    CNC processing with tolerance within 0.02mm.


    The module is 250*500mm.


    Which can make LED display look like a complete screen.


    Package&Shipping

    Packaging Detail:100cm*112cm*71cm G.W.:165KG

    Or as customer's request.

    Shipping Detail: UPS/Fedex/TNT/DHL, By air, By sea
