    High Brightness P10 Full Color led display module outdoor For Advertising

    Ask Lasest Price
    Brand Name : MLED
    Model Number : P10
    Certification : CE-ROHS
    Price : USD 8.2-20 piece
    Payment Terms : L/C, D/A, T/T
    Supply Ability : 100000 piece per month
    Delivery Time : 5-15work day
    • Product Details
    • Company Profile

    High Brightness P10 Full Color led display module outdoor For Advertising

    High Brightness P10 Full Color led display module outdoor For Advertising

    Specification

    1,Utra high protection class

    2,slim and lightweight,clear display

    3,Common good,flexible assembly

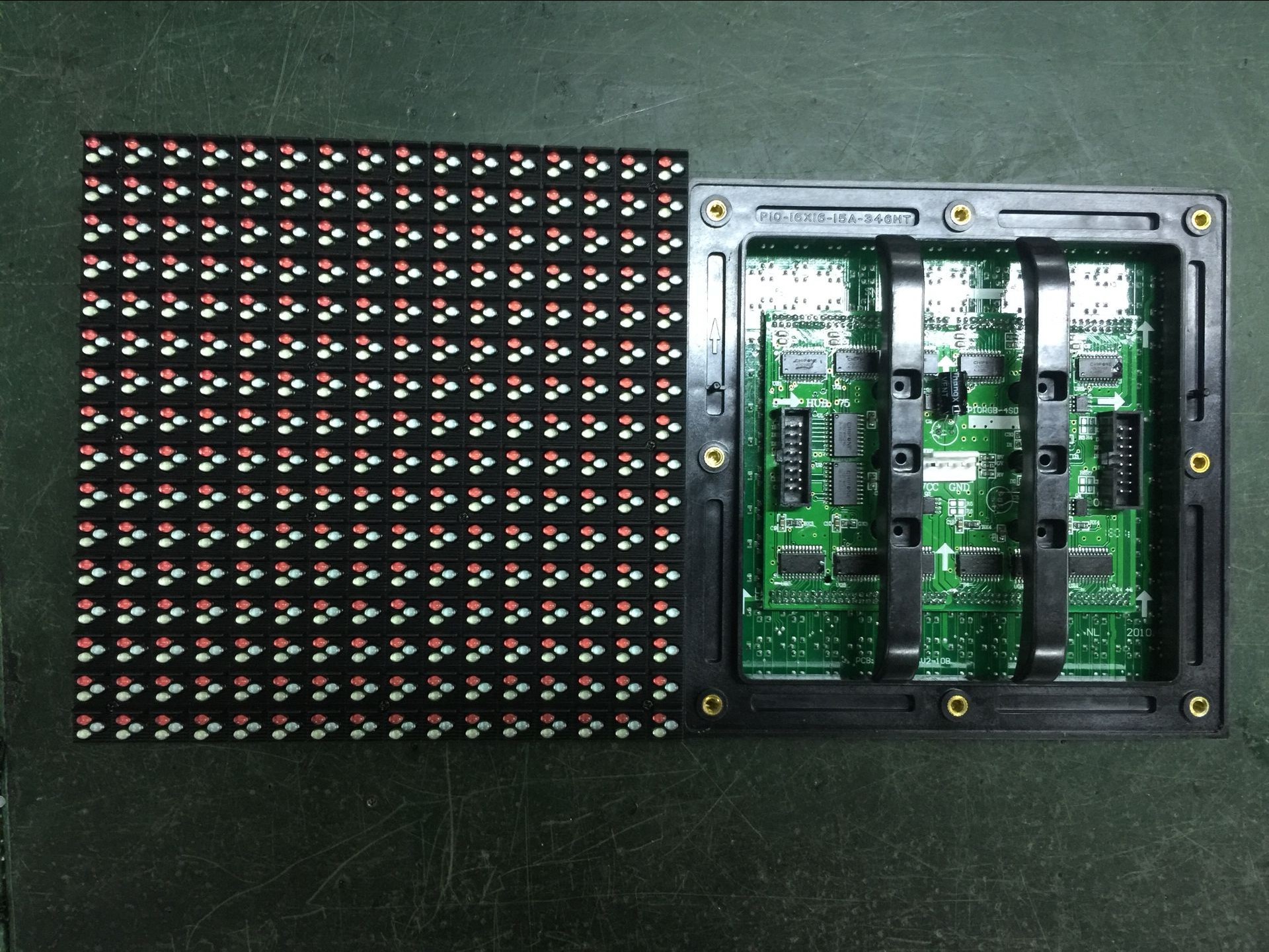

    P10 Outdoor DIP TECHNICAL PARAMETERS

    Unit ModuleItemParameter
    Model NumberP10-4S
    Module size160mm*160mm
    Pixel pitch10mm
    Pixels Density10000dots/m2
    Pixel configuration1R1G1B
    Package modeDIP346
    Pixel resolution16dots(W)*16dots(H)
    Max Power16W
    Module thickness16-18mm
    Weight0.45kg
    Drive typeConstant drive
    Scan mode1/4scan
    Port typehub75
    Brightness of white balance≥8000cd/m2

    LED

    Cabinet

    Dimension640mm*640mm
    Monomer Module Number16
    Power supply5V/60A*1 pcs
    Thermal dischargeanto
    Pixel per cabinet64*64dots
    Best viewing distance6M~40M
    Best viewing angle160°(W) 120°(H)
    Temperature

    storage:-35℃~+85℃
    working:-20℃~+50℃

    Relative humidity10%-95%
    Thickness80mm
    PowerWorking voltageAC220V±10%
    Average Power consumption270W/㎡
    Max.Power consumption

    ≤680W/m2

    Current≤20mA(single LED)
    Control systemCPUPentium4 or above P4
    Operation systemWIN98/2000/NT/XP/WIN7
    Control methodSynchronization

    Main technical

    parameter

    Driving deviceConstant drive IC
    Refresh frequency≥1200HZ
    Grey scale/colors4096gray level/16.7M colors
    MTBF≥9000hours
    Fire rateGrade one
    Display Mode≥800*600/1024*768





    Our factory



    Our certificate



    Packaging


    (1)Wooden case: Wooden case is only for one time using transportation.For the fixed installation ledpanel system, wooden case packing is the only way and the best way for packing



    (2)Flight case: The LED air box is equipped with a clapboard and shock-proof cushioning material. It is shock-proof and shock-proof.;Casters can be installed in the LED air box, which is highly mobile and flexible.;Can be customized according to customer requirements;if your led display screen system is for the rental use, please choose the flight case for your led display screen.



    (3)Carton box: It is the inexpensive packing method for the led display,which is mainly for the small screen and short shipping distance.



    FAQ


    1. Can you offer a technical support? Since it's my first time....
    We provide free training for our customer, teach the client how to set up screens, make configuration of parameters, broadcast the videos through Nova star and colorlight or Linsn control systems, our engineer can directly teach you how to control, or help you to done if you are really don't know how to control(Our Engineer can text English, we can saving more time


    2.How about the quality?

    Our led products must be testing of at least 72hours before shipping, from purchase raw materials to ship ,Each step has strict quality control systems to ensure led display with good quality


    3. What about the lead time for an order?
    Always: 10-17 days, as your order quantity, sometimes we have stock, can delivery within 7 days

    4. What about the warranty?
    We have Three years quality guaranteed, spare parts such as led module, receiving card, control card, power supply are damaged not cause of artificial damaged, then it's free maintenance and ship back new ones for replacement.
