    High quality cheap price rental smd hd p4 p5 p6 p8 p10 outdoor led display screen

    Ask Lasest Price
    Brand Name : MLED
    Model Number : P4
    Certification : CE/RoHS
    Price : USD 220-230 Per Piece
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 100000 Pieces Per Month
    Delivery Time : 11-17 days
    • Product Details
    • Company Profile

    High quality cheap price rental smd hd p4 p5 p6 p8 p10 outdoor led display screen

    High quality cheap price rental smd hd p4 p5 p6 p8 p10 outdoor led display screen

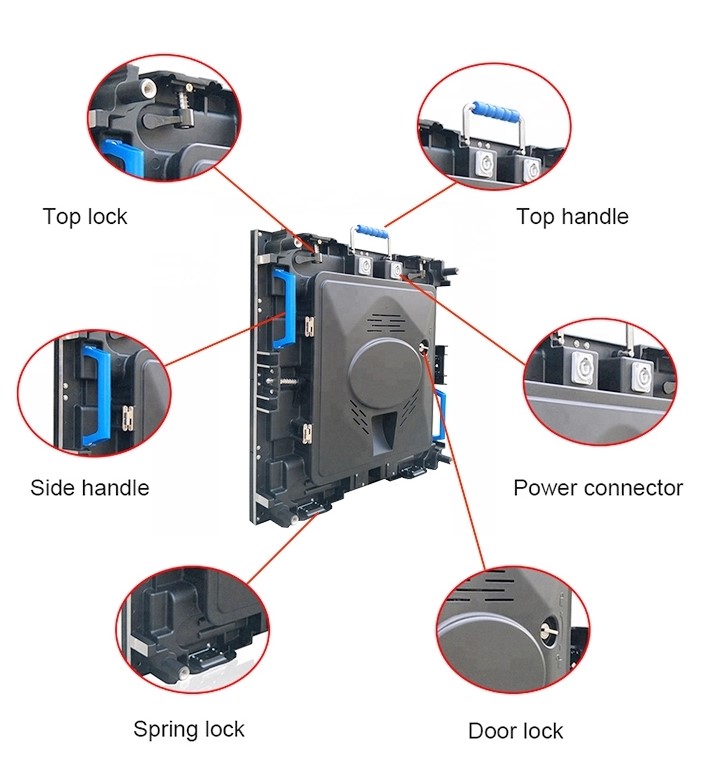

    Die casting cabinet feature

    1. Light - the weight is only 8kg, which can be carried by a single person, so it is very easy to install;


    2. Thin - the box body is made of die-casting aluminum, which has high strength, toughness, high precision, and is not easy to deform, saving labor for transportation;


    3. Precision - the dimension is machined to the accuracy of 0.1mm;


    4. Compatibility - new structure design, meeting the requirements of hoisting and stacking, indoor and outdoor requirements;


    5. Fast - the box is connected up, down, left and right with a fast locking mechanism, which can complete the installation of a box in 10 seconds, with high installation accuracy;


    6. Reliable - high strength and hardness, good heat dissipation effect.

    Product parameter

    Unit ModuleItemParameter
    Model NumberP4-8S
    Module size256mm*128mm
    Pixel pitch4mm
    Pixels Density62500 /m2
    Pixel configuration1R1G1B
    LED Package modeSMD1921
    Pixel resolution64dots(W)*32dots(H)
    Max Power30W
    Module thickness16mm
    Drive typeConstant drive
    Scan mode1/8scan
    Port typeHUB75
    Brightness of white balance≥5800cd/m2

    LED

    Cabinet

    Dimension512mm*512mm
    Monomer Module Number8pcs
    Power supply5V/40A*2 pcs
    Thermal dischargefan 1pcs
    Pixel per cabinet128*128
    Best viewing distance4M~50M
    Best viewing angle160°(W) 120°(H)
    Temperature

    storage:-35℃~+85℃

    working:-20℃~+50℃

    Relative humidity10%-95%
    Thickness65mm
    PowerWorking voltageAC110V~220V±10%
    Average Power consumption<360W/㎡
    Max.Power consumption<900W/㎡
    Current<20mA(single LED)
    Control systemCPUPentium4 or above P4
    Operation systemWIN98/2000/NT/XP/WIN7
    Control methodSynchronization

    Main technical

    parameter

    Driving deviceConstant drive IC
    Refresh frequency>1920HZ
    Grey scale/colors

    16384 16.7M

    16384gray level/16.7M colors

    MTBF>9000hours
    Power switchAutomatic switch
    Display Mode≥800*600/1024*768



    Our company

    Our service
    We have an excellent customer service system with a well-trained, strong and skilled service team to provide customers with a comprehensive pre-sales service, product services and after-sales service.

    Our customer service department has more than a dozen highly skilled and experienced technical support engineers, who are all in charge of the technical support of all LED display products we provide all over the world.

    We are continuously improving upon our level of service and quality to quickly and effectively meet customer needs and guarantee their benefits and interests.


    Service concept
    We believe in taking the initiative, maintaining honesty and trustworthiness, which means we will respond quickly to customer questions and do everything possible to meet customer demands.


    Service content
    1. 24-hour hotline service, including counseling and technical guidance.
    2. On-line service.
    3. Failure maintenance of LED panels.
    4. Free professional technical training
    5. Paid software upgrade.
    6. Warranty service.
    7. Engineering technical service.


    Warranty period
    Each of our LED display products comes with at least three years warranty and a lifetime maintanance services.
