    Outdoor Fixed Full Color Led Screen 6000cd/sqm Brightness 2-3 Years Warranty

    Ask Lasest Price
    Brand Name : MLED
    Model Number : P10
    Certification : CE, CCC, RoHS,FCC
    • Product Details
    • Company Profile

    Outdoor Fixed Full Color Led Screen 6000cd/sqm Brightness 2-3 Years Warranty

    Hot Sale Professional Lower Price outdoor fixed full color led screen


    TECHNICAL PARAMETERS


    LED ModuleItemParameter
    Module size320mm*160mm
    Pixel pitch10mm
    Module resolution32dots(W)*16dots(H)
    Module thickness16-18mm
    Weight0.45kg
    Scan mode1/4scan

    LED Cabinet

    Cabinet Dimension960*960mm
    Monomer Module Number3*6=18Pcs
    Pixel per cabinet64*64dots
    Cabinet MaterialSteel
    Thickness80mm

    Whole Screen Main technical

    parameter

    Working voltageAC110-220V±10%
    Output voltageDC-5V,40A/60A/80A
    Display functionVideo, text, Graphic
    Refresh Rate>1800Hz
    Control methodSynchronization
    Driving deviceConstant drive IC
    Refresh frequency≥1200HZ
    MTBF≥9000hours
    Fire rateGrade one
    Brightness≥6500cd/m2
    Waterproof levelsFront: IP65, Back: IP43

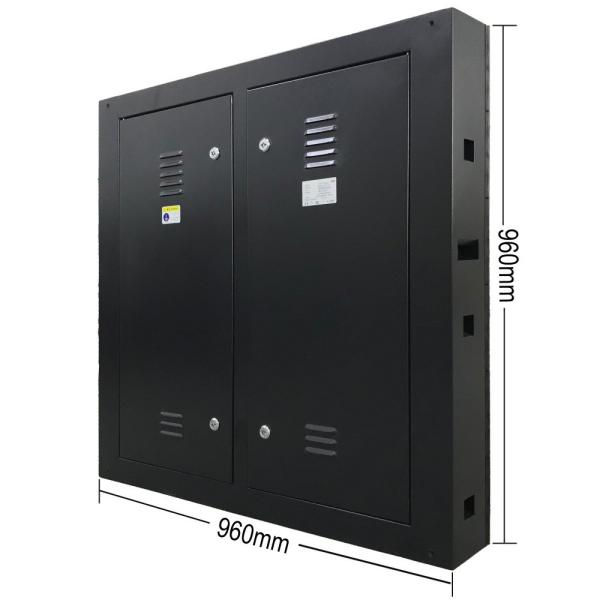

    CABINET PICTURS


    PACKING& DELIVERY:


    For Iron cabinet of indoor and outdoor LED display screens, we use wooden case to pack,.
    One wooden case include 4 cabinets, one flight case include 6 cabinets By air or by sea!


    Single package size: 104*20*104 cm

    Single gross weight:50.000 kg



    CASE SHOW



    Outdoor Fixed Full Color Led Screen 6000cd/sqm Brightness 2-3 Years Warranty


    FAQ


    1. How long could i receive the inquiry reply ?
    A: You will get a reply within 12 hours.

    2.How to proceed an order for led display?
    A:Firstly let us know your requirements or application
    Secondly we quote according to your requirements or our suggestions.
    Thurdly customer confirms the design document and places deposit for formal order.
    Fourthly we arrange the production

    3.What kind of led display do you offer ?
    A: Different product offer different time frame warranty, but all product here we offer 2 year at least warranty

    4.How long will it take to deliver goods ?
    A: We will start preparing goods when we get your bank receipt. The package will be shipped out in 1-2 working days after we get
    your payment.

    5.How is the after sales service ?
    A: We have a professional team which is in all around the world , also a service hot-line dealing with your complains and
    feedback.We also offer 24-hour online service to help you solving problems
