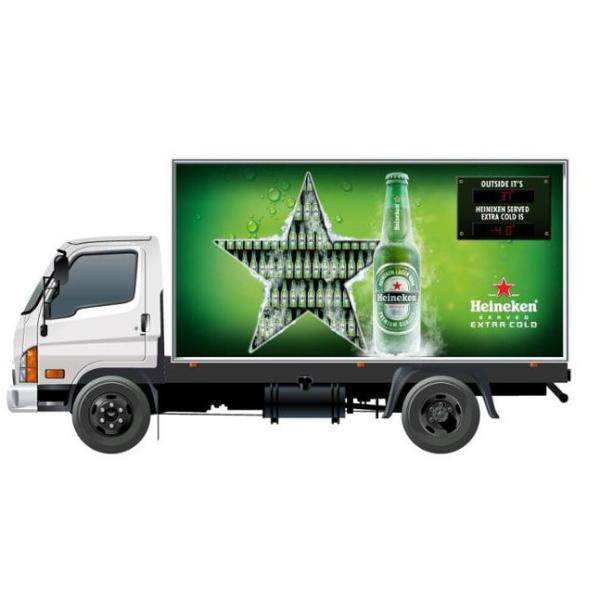

P5 Innovative Products 2020 Outdoor Advertising Truck Mobile Led
Billboard /Video screen
Product advantages
1.The quality module
All modules and chips are purchased from leading suppliers from
across the world. We take great care of quality and performance,
and thus we remain very careful while selecting the modules and
chips. LED chip is provided by Epistar, Cree, Nichia and Opto.
Quality IC supplied by MBI, TMS, PWM and Mingyang.
2.Super visual impact
The height of truck led display just same as the pedestrian line of
sight, advertising information can be close to the audience, to
achieve the greatest visual opportunities. At the same time, for
drivers, advertising particularly eye-catching.
3.Light and thin, easy to assemble and disassemble
The cabinet structure is thin and light not only reduces truck
space occupied but also easy to dismount.
4.Multi-functional
Truck led display not only used as mobile advertising media but
also used as the display of temperature stage.
5.Super static electricity protection
To prevent running vehicle generated electrostatic damage the
lights and driver IC of led display. To protect the safe operation
of the display.
6.High Brightness, Better Quality
Installing at outdoor places require the displays to produce high
brightness outputs. The high brightness and high definition
features of the Truck LED Screen ensures great quality pictures -
making it a perfect fit for promotion, station, stadium and other
outdoor places.
Product parameter
| Unit Module | Item | Parameter |
| Model Number | P5-8S |
| Module size | 320mm*160mm |
| Pixel pitch | 5mm |
| Pixels Density | 40000dots/m2 |
| Pixel configuration | 1R1G1B |
| LED Package mode | SMD1921 or 2525 |
| Pixel resolution | 64dots(W)*32dots(H) |
| Max Power | 45W |
| Module thickness | 17.05mm |
| Weight | 0.45kg |
| Drive type | Constant drive |
| Scan mode | 1/8scan |
| Port type | HUB75 |
| Brightness of white balance | ≥5500cd/m2 |
LED Cabinet | Dimension | 640mm*640mm |
| Monomer Module Number | 8pcs |
| Power supply | 5V/40A*2 pcs |
| Thermal discharge | fan 1pcs |
| Pixel per cabinet | 128mm*128mm |
| Best viewing distance | 5M～100M |
| Best viewing angle | 160°(W) 120°(H) |
| Temperature | storage:-35℃～+85℃ working:-20℃～+50℃ |
| Relative humidity | 10%-95% |
| Thickness | 85mm |
| Power | Working voltage | AC220V±10% |
| Average Power consumption | 390W/㎡ |
| Max.Power consumption | ≤980W/㎡
|
| Current | ≤20mA(single LED) |
| Control system | CPU | Pentium4 or above P4 |
| Operation system | WIN98/2000/NT/XP/WIN7 |
| Control method | Synchronization |
Main technical parameter | Driving device | Constant drive IC |
| Refresh frequency | ≥1920HZ |
| Grey scale/colors | 65536gray level/16.7M colors |
| MTBF | ≥9000hours |
| Power switch | Automatic switch |
| Display Mode | ≥800*600/1024*768 |
Packing & Delivery
Carton box:It is the cheapest packing method for the led display,which is
mainly for the small screen and short shipping distance.
Wooden case:Wooden case is only for one time using transportation. After
unpack, it cannot be used any longer. For the fixed installation
ledpanel system, wooden case packing is the only way and the best
way for packing since the low cost and same safety level for one
timeusing..
Flight case: has wheels and handles which is for the rental use led display,
to make the transportation be very convenient and protect the led
display better..if your led display screen system is for the rental
use, please choose the flight case for your led display screen.
Our company
Shenzhen Mled melton optoelectronic technology co., LTD.
specialized in manufacturing indoor and outdoor high-definition
full-color LED display, LED lighting and lighting application
products.Our company has professional production equipment and
excellent technology, industry veteran, high-quality, high
standards of modern management team, a high level of professional
and technical developer, has many years of operating experience and
well-trained, a significant number of skilled workers.
Our products has passed CE, FCC and ROHS certificate. reliable
quality, advanced technology, perfect technology, automation of
form a complete set of production equipment, standard production
line, perfect sales network and good pre-sales after sales service
is to provide high quality products and continuous development of
our roots.
In recent years, our company has successively developed overseas
agent channels such as the United States, Canada, the United
Kingdom, Indonesia, Chile, Colombia, Turkey, etc., and its LED
display products have also been exported to more than 100 countries
and regions such as the United States, Russia, Sweden, Turkey,
Poland, France, Israel, Argentina, Spain, etc
Our Service
1)Reply your inquiry in 24 working hours.
2)Experienced staffs answer all your query in fluent
English,Spanish,French,German etc
3)Customized design is available,OEM & ODM are welcomed.
4)Exclusive and unique solution can be provided to our customer by
our well-trained and professional engineers and staffs.
5)Special discount and protection of sales area provided to our
distributor
6)Warmly welcome your visit in our company if available.
7)Warranty: 24 months, a little investment for longer warranty
time.
